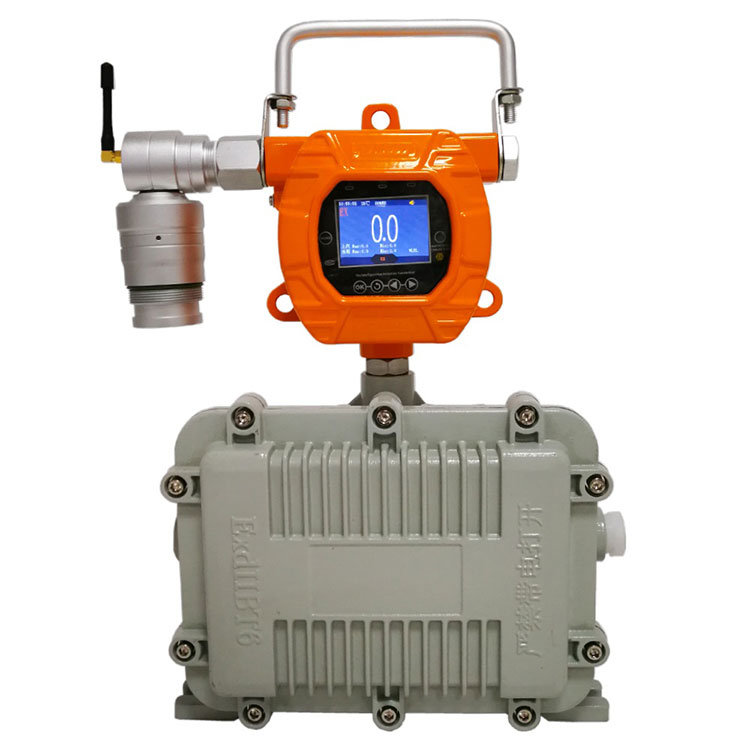

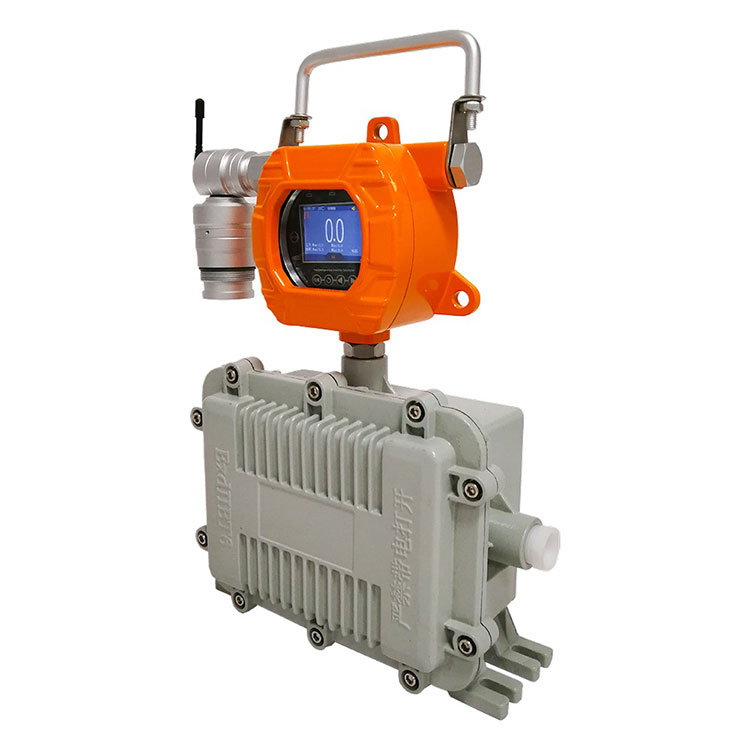

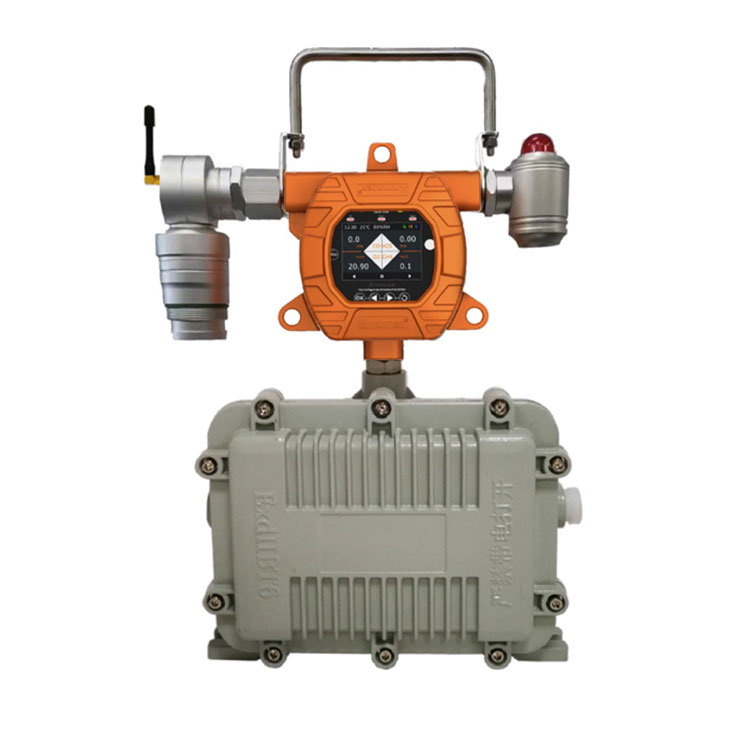

Transportable Multi-Gas Area Monitor

The China Zetron MIC-600S Transportable Multi-Gas Area Monitor is utilized for continuous 24-hour online monitoring of TVOC gas concentration on-site, as well as measuring temperature and humidity. It provides on-site concentration display and alerts through sound and light indicators for exceeding standards. Additionally, it can remotely transmit data for further analysis and monitoring.

Model:MIC-600-S

Send Inquiry

Product Description
Parameter
Application
Video

Transportable Multi-Gas Area Monitor Supplier and factory

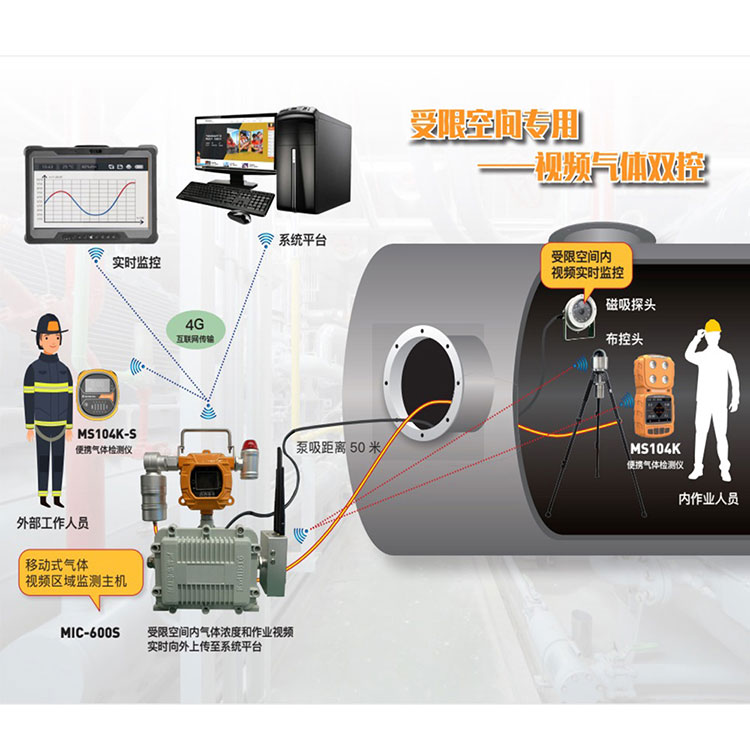

MIC-600S Transportable Multi-Gas Area Monitor is used for 24-hour continuous online monitoring of the gas concentration of TVOC on site and measurement of temperature and humidity.It can display concentration on site and sound and light alarms for exceeding standards,and remotely transmit data.MIC-600S Transportable Multi-Gas Area Monitor can detect gas concentration in pipelines or confined spaces or in atmospheric environments.It can also detect gas leaks and the purity of high-concentration single gas.The sturdy and durable explosion-proof shell and fluorocarbon paint surface treatment process are suitable for various dangerous places and corrosive environments with strong acid and alkali.It is wear-resistant and will not fade or peel off within 10 years.

Features

●Test EX combustible gas ,can detect up to 6 gases,pump suction type

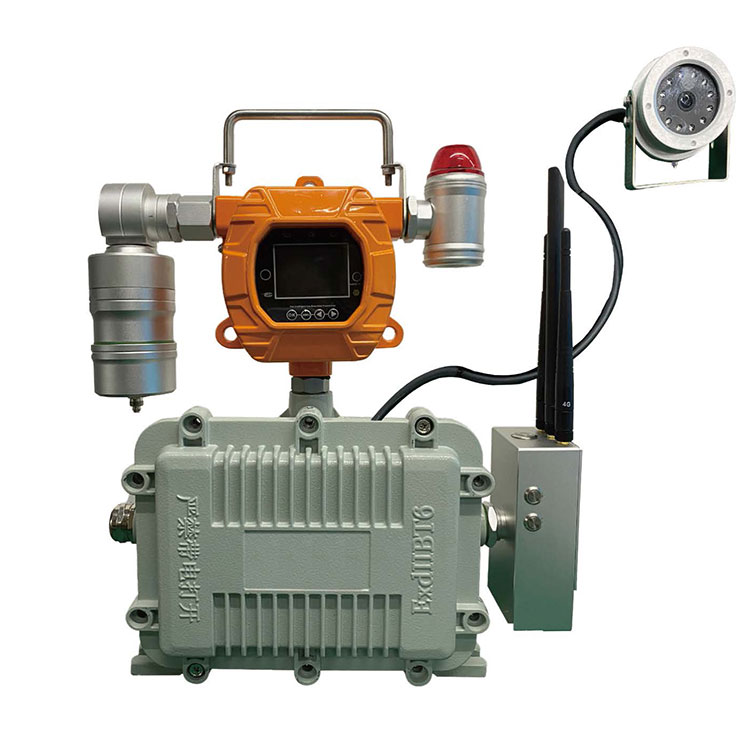

●2.2 million pixel small camere ,explosion-proof,ball type

●20A rechargeable lithium battery for 7 days to 15 days

● Medium-sized ExdIIBT6 explosion-proof box

● DTU core board

● WIFl and 4G router,alarm LORA wireless interconnection as standard

● Data and videos can begot from phone APP or cloud platform

Advantages

Detected gas	H2S,CO,O2 and EX,optional:can detect up to 6 gas
Detection principle	Catalytic combustion for EX,electrochemical sensor for H2S,CO,O02, can be customized
Detection accuracy	≤±2%FS,temperature 0.5 ℃,humidity:3%RH,higher accuracy can be customized
Working method	Fixed installation,pump suctiontype,flow type,diffusion type and pipeline type(M45X1.5 externalthread )are optional
nstallation method	Pipeline type,wall-mounted type .The working pressure of the pipeline type is±30%of standard atmospheric pressure.If it exceeds the range,it needs to be depressurized.
Response time	T90≤20 seconds
Recovery time	≤30 seconds
Output signa	Wireless transmission (4G,WiFi and Lora)
Alarm mode	Three-level alarm,alarm point can be set.On-site sound and light alarm(optional).Default 1 channel output ,3 passive contact outputs optional
Working environment	-40 ℃~+70 ℃
Sample gas temperature	40 ℃ ~+70 ℃,higher temperature customized
Relatiye humidity	10-95 %RH (non-condense),10-99 %RH optional
Power supply method	Rechargeable battery,battery capacity 24V 6A continuously for 150 hours,larger capacity can be customized
Power supply reference	24V,2.1A switching power supply can drive 40 toxic gas detectors,or 15 flammable and infrared gas detectors
Explosion-proof type	ExdⅡCT6
Electrical interface	3/4NPT,optional M20X1.5 internal thread,1/2NPT
Protection level	IP66
Overall dimensions	210×170×85mm
Weight	1.8Kg
Optional accessories	Wall mounting bracket,pipe mounting bracket,flange pipe installation or stainless steel threaded welding seat.Temperature and humidity pretreatment system,pressure reducing valve,tlowmeter temperature and humidity measurement,large capacity SD memory card,rain cover.24VDC or 220AC sampling pump (sampling distance 10 meters),vacuum pump (sampling distance greater than 40 meters) 24V switching power supply
Application	Petroleum,chemicalindustry,medicine,environmental protection,flue gas analysis,air treatment,etc.,all occasions that require fixed nstallation and online detection of gas concentration

Petroleum,chemical,pharmaceutical,environmental protection,gas distribution,flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
