Personal Carbon Dioxide Monitor

Model:MS104K-S1

MS104K-S1 Personal Carbon Dioxide Monitor from Zetron supplier is a compact, ultra-low power consumption, mobile gas detector for rapid detection of gas concentration.

ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
Working time 1-2 years
Diffusion measurement
Unit switch
Support 1000 event recording
3-button for easy operation
Infrared communication port，optional communication dock for PC software usage
With man-down alarm function
Setting recovery function,
1.7-inch LCD backlight display
Sound, light alarm and vibration alarm
Alarm mode: LA, HA, STEL, TWA
Anti-Misoperation function
Zero point automatic zero point calibration function
95-105dB Audible alarm

Model:MS104K-S1

Send Inquiry

MS104K-S1 Personal Carbon Dioxide Monitor

Detection Gas: CO

FEATURES:

ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
Working time 1-2 years
Diffusion measurement
Unit switch
Support 1000 event recording
3-button for easy operation
Infrared communication port，optional communication dock for PC software usage
With man-down alarm function
Setting recovery function,
1.7-inch LCD backlight display
Sound, light alarm and vibration alarm
Alarm mode: LA, HA, STEL, TWA
Anti-Misoperation function
Zero point automatic zero point calibration function
95-105dB Audible alarm

SPECIFICATIONS

Single gas detector: CO
Detection principle: EC electrochemical sensor
Measuring range:0-20000ppm
Resolution: 1ppm
Accuracy:≤±2% (F.S)
Respond time: T90≤30S
Sensor lifetime: 2-3 years
Detection method: diffusion type
Battery: 3.6V,1600mAh
Protection level: IP68
Product Size: 87×63×32mm(L×W×H) or 3.4x2.5x1.3 inch
Weight: 200g
Protection grade: ExiaⅡCT4Ga
Anti-drop height: ≥ 8 meters
Working environment: -40℃～+70℃, ≤95%RH (non-condensing occasions)
Warranty time: 1 year

Detection Gas	carbon monoxide CO,hydrogen sulfide H2S,oxygen O2 combustible gas Ex,carbon dioxide CO2,etc
Detection Range	0-100ppm,0-100%LEL,0-100%VOL,depending on requirement
Unit	ppm,mg/m3.LEL.VOI
Sensor Principle	Electrochemical sensor,IR sensor and etc
Sampling Type	Diffusion
Display	1.7inch LCD
Display content	real-timeconcentration,alarm,power,chargingstatus concentration unit,gas name,etc.
Accurancy	S±3%FS
Responding time	T90≤30S
Power supply	DC3.6V
Battery capacity	1600mAh energy battery,no charging,working time 1-2 years
Working Environment	Temperature:-20℃~+50℃,can be customized -40℃~+70℃ Relative humidity:10-95%RH
Communication	nfrared,optional communication base for communication, manual calibration and export of data
Language	English
Explosion-proof	Exia Il CT4Ga,Sil3,Atex
Protection Leve	IP68
Size	87x63x32mm
Weight	200g
Standard Accessories	calibration cover (diffusion type),instructions,certificate packaging box

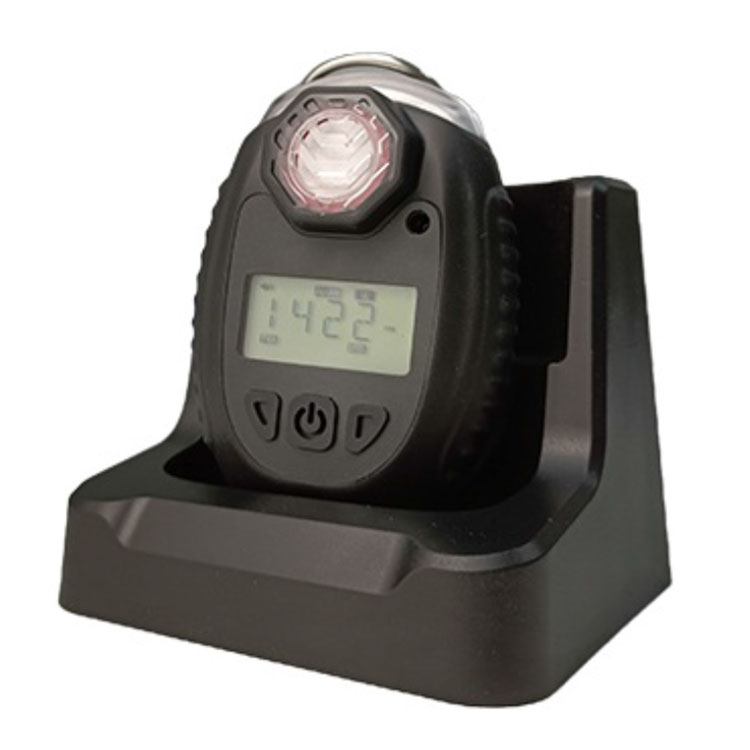

Optiona	communication base (TYPE-C interface)
