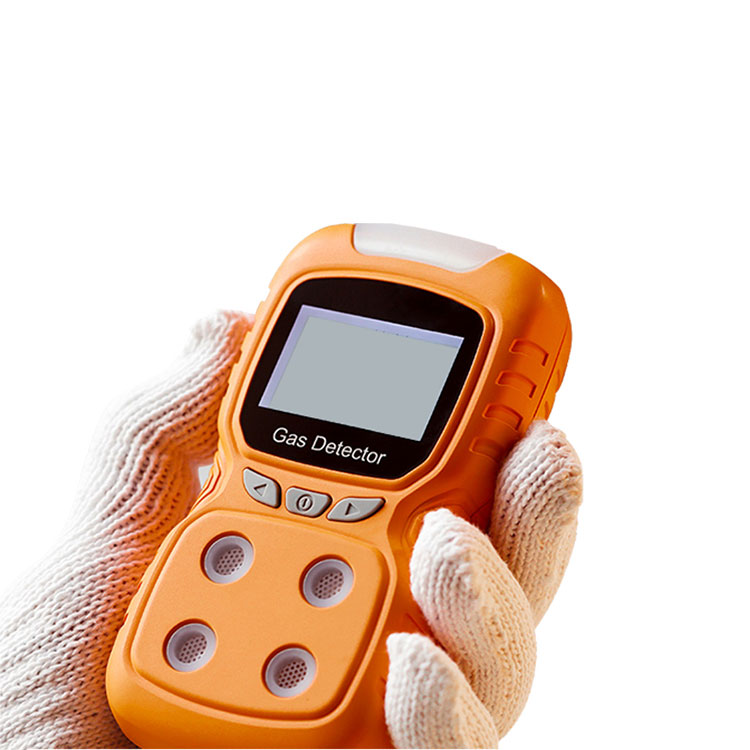

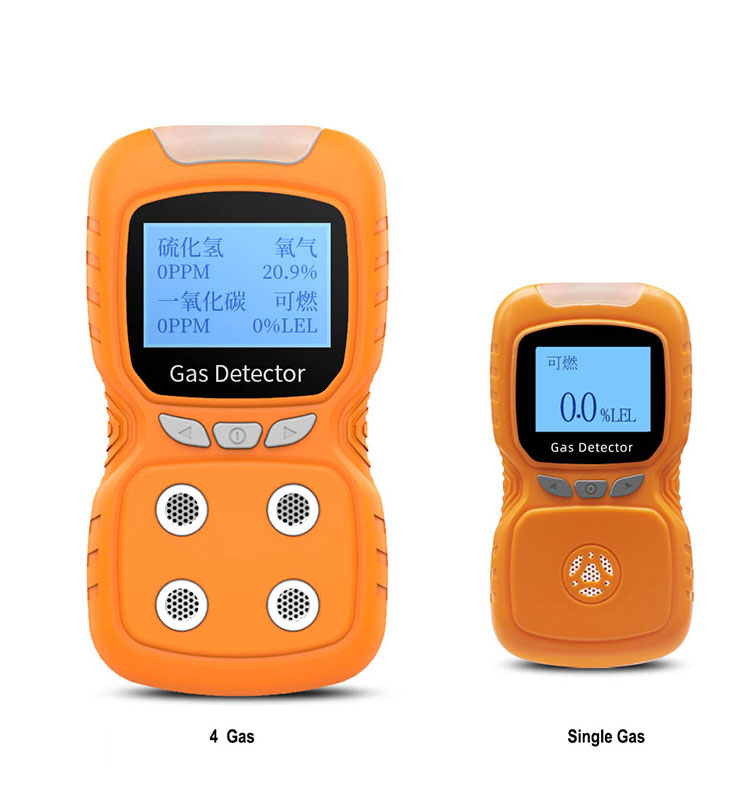

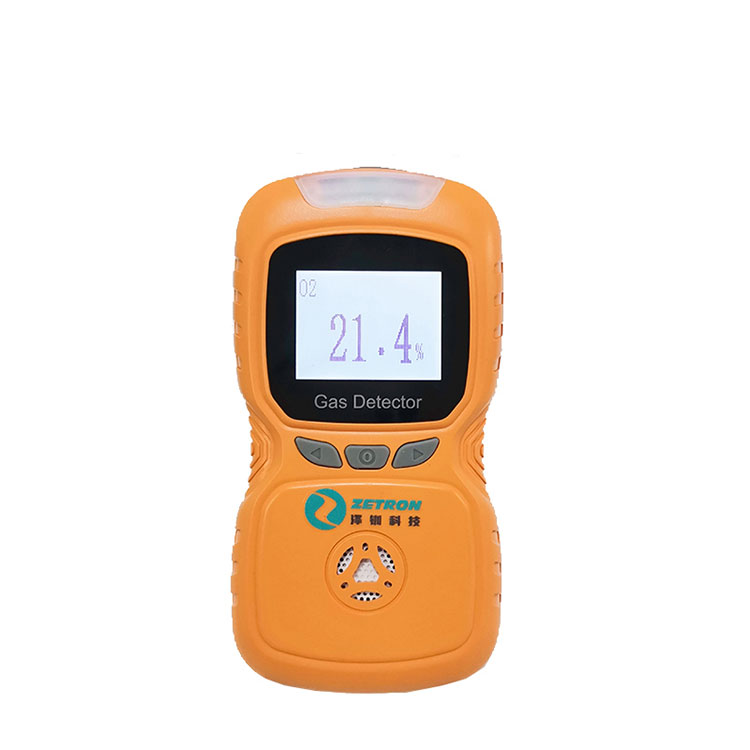

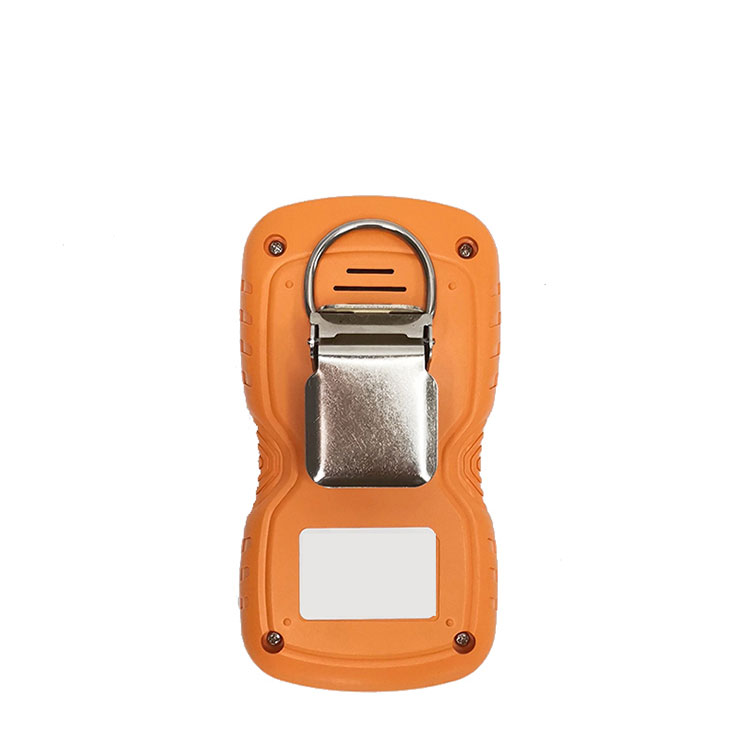

Portable Diffusion Gas Detector

Zetron supplier's ZT100K portable diffusion gas detector providing protection for atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types. The detector is widely used in petroleum, chemical industry, environmental protection, that need safety detection of toxic and harmful, explosion prevention. We provide gas detector OEM/ODM serves.

Model:ZT100K

Send Inquiry

Product Description
Parameter
Application
Video

China ZT100K Portable Diffusion Gas Detector supplier

Providing protection for atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types, ZT100K is unparalleled in its versatility, capability and overall value.

Continuously monitoring and displaying concentrations of gas, the compact and lightweight ZT100K was designed and engineered with an extensive host of applications in mind.

Type	Range (optional, customizable)
CO	0-200/1000ppm
CO(with H2 compensation)	0-200/1000ppm
H2S	0-50/100/200/1000/5000ppm
O2	0-25%vol
NO2	0-20/500ppm
NO	0-100/1000ppm
SO2	0-20/100/2000ppm
CL2	0-20/200/2000ppm
NH3	0-100/1000/5000ppm
H2	0-1000/10000/40000ppm
H2 (with CO compensation)	0-1000ppm
PH3	0-5/20/1000ppm
CH2O	0-10/50/1000ppm
O3	0-5/20/100/1000ppm

Measuring gas	Combustible gas（LEL）	Measuring Type	Diffusion type
Measuring range	0～100%LEL 0～100%Vol Other ranges can be customized	Resolution	0.1 %LEL 0.1 %Vol Other resolution can be customized
Response time	T90 ≤30 seconds	Recovery time	≤30 seconds
Accuracy	±3%FS	Repeatability	3%
Gas Temperature	Regular gas: -30 ℃ ~ + 70 ℃ Toxic gas: -20 ℃ ~ + 50 ℃	Humidity	10 ~ 95% RH
Display	Large LCD displays	Alarm	Voice Warning & Light
Size	0.12 Kg	Weight	1146026 mm
Explosion-proof	EXiaIICT4	Protection grade	IP 65
Battery	3.7VDC，2500mAh Imported lithium batteries	Charing Time	≤6 hours ( USB charging)
Standard accessories	Manual, qualification certificate, warranty card, USB

The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.
