Fixed Gas Detector

Fixed gas detectors from Zetron factoey typically employ various sensing technologies, such as electrochemical sensors, catalytic bead sensors, infrared sensors, or semiconductor sensors, depending on the type of gas being monitored. They are connected to a control panel or a central monitoring system, which displays real-time data and triggers alarms in case of gas leaks or hazardous gas levels.

Model:MIC300

Send Inquiry

Product Description
Parameter
Application
Video

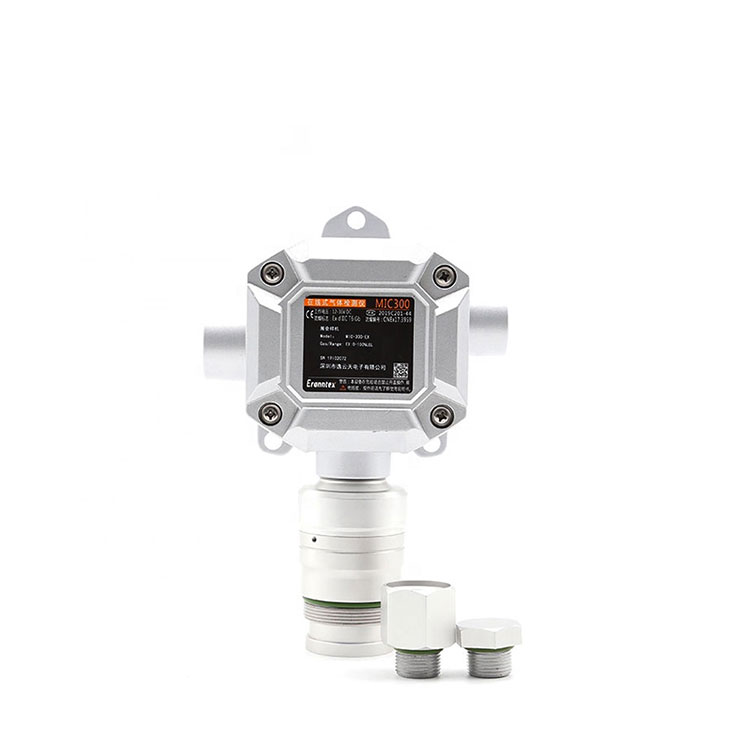

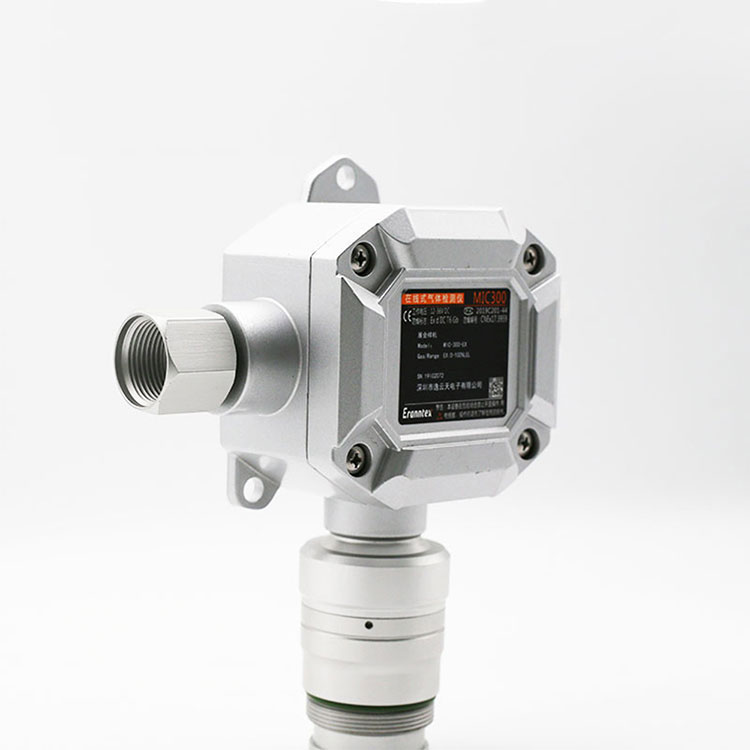

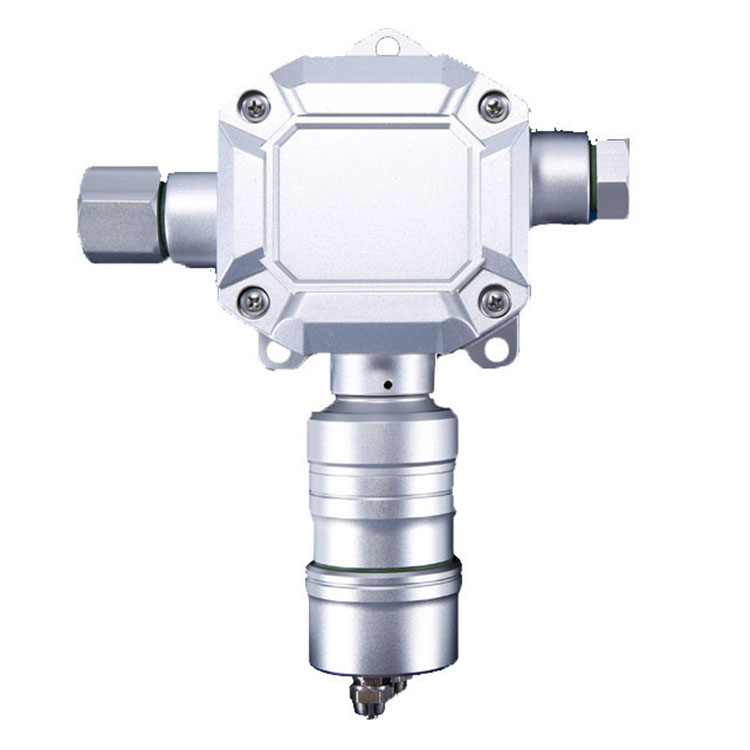

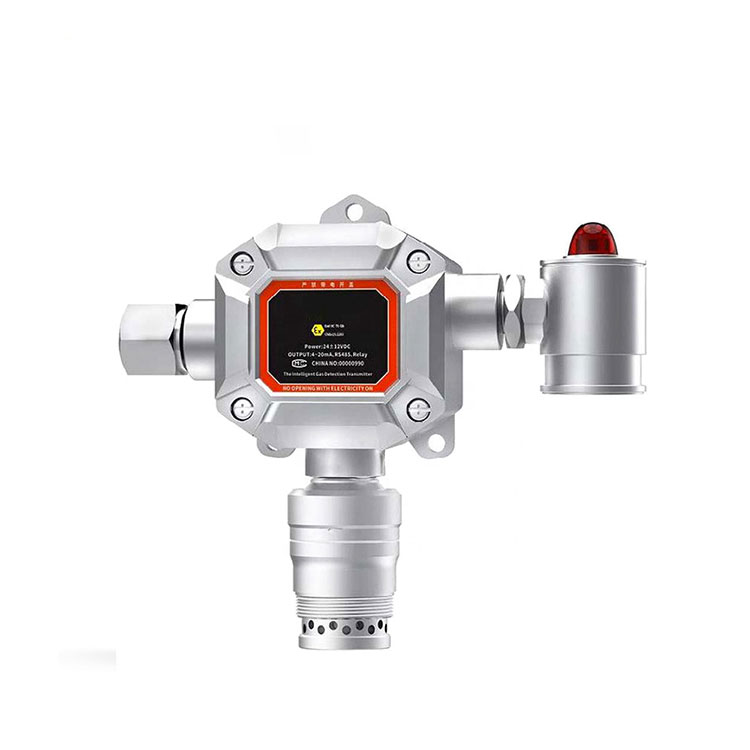

MIC300 Online Toxic and Harmful Gas Detector Manufacturer

MIC300 Series Fixed Gas Detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.

With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.

Easily integrated into a control system.

Gas	Oxygen/O2 Gas Detector
Detection range	0~ 1ppm
	0~ 10ppm
	0~100ppm
	0~1000ppm
	0~ 5000ppm
	0~ 50000ppm
	0~ 100000ppm
	0~ 200 mg/L
	0~ 100%LEL
	0~ 20%VoL
	0~ 50%Vol
	0~ 100%Vol
	Other ranges can be customized
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm);
	0.01ppm (0 ~ 100 ppm),
	0.1ppm (0 ~ 1000 ppm),
	1ppm (0 ~ 10000 ppm or more),
	0.01 mg/l (0 ~ 200 mg/l),
	0.1% LEL,
	0.01%Vol
	0.001% Vol
	Other ranges can be customized

Detection principle	Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
	Depending on the type of gas, range, field environment and user demand,
	Sensor can be customized
Sensor service life	Electrochemical principle: 2 ~ 3 years;
	Infrared principle: 5 ~ 10 years;
	Thermal conductivity: 5 years
Allowable error	≤±3% F.S (other or higher precision levels can be customized)
Linearity	≤±2%	Repeatability	≤±2%	Uncertainty	≤±2%
Response time	T90≤30 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Working voltage	12 ~ 30VDC direct current
	the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Power supply reference	24V, 2.1A is possible to drive 40 units of toxic gas detector,
	or 15 units of flammable, infrared gas detector.
Working method	Fixed type installation, online detection, diffusion type measurement
Protection level	IP65
Explosion-proof mark	ExdⅡCT6, certificate number: CNEx15.1283
Exterior dimensions	233×205×65mm (L×H×W)
Weight	1.0 Kg
Standard accessories	Manual, qualification certificate, warranty card, outer packaging box

All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas,Cannabis & Hemp Oil, Breweries and so on.
