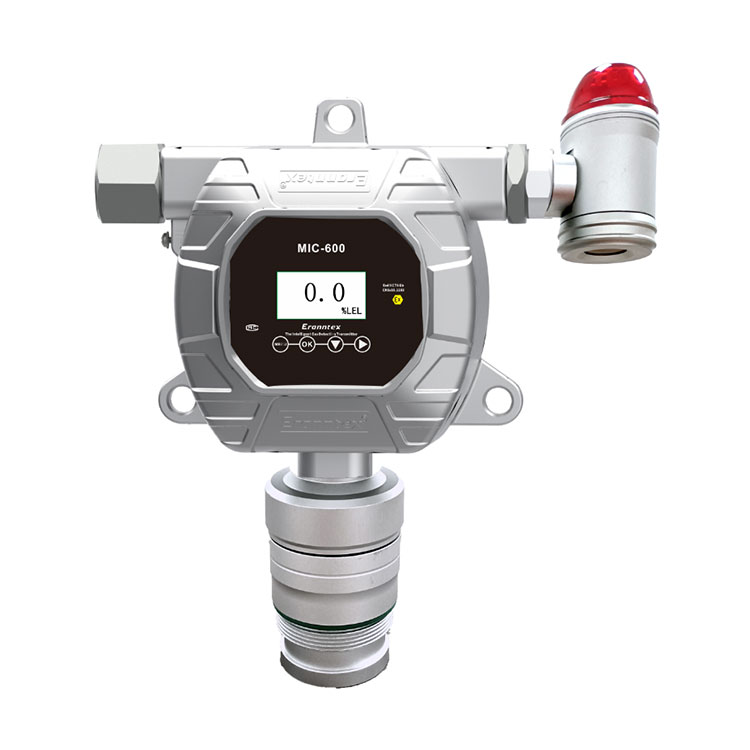

MIC-600-L Maintenance-free Magnetic Gas Detector can display concentration on site and sound and light alarm for exceeding the standard, and transmit remote data in real time. Adopting a low-power LCD display and a combustible gas sensor based on the low-power infrared principle , the MIC-600-L battery-powered magnetic combustible gas sound and light alarm device adopts ultra-low power circuit design and mature kernel algorithm processing. It has obtained a number of software patents and appearance patents, thus creating a new generation of online low-power gas detection and alarm devices that is currently leading in the industry . MIC-600-L can detect gas concentrations and gas leaks in confined spaces and atmospheric environments. It is especially suitable for occasions where wiring is inconvenient. For example, combustible gas detection alarms near gas pumps with mobile payment functions in gas stations . According to AQ 3010-2022 "Safety Code for Gas Station Operations", the installation of flammable gas sound and light alarm devices is required. Carry out mobile payment operations.

MIC-600-L magnetic combustible gas alarm product features

● Intrinsically safe circuit design, intrinsically safe explosion-proof and explosion-proof certification, high reliability and stability;

●Lithium battery power supply, ultra-low power consumption circuit design and intelligent power consumption management, the device has ultra-long standby time, supports 2-5 years of continuous operation, and can be customized for longer periods;

●High-definition LCD screen display, real-time viewing of data on site;

●24-hour uninterrupted real-time monitoring, if the concentration exceeds the standard, an alarm will be issued immediately;

● Comply with EMI and EMC standards, and passed national standard testing and CPA measuring instrument type certification.

Implementation standards: Format adjustment

GB15322.1-2 019 " Combustible Gas Detectors Part 1: Point Type Combustible Gas Detectors for Industrial and Commercial Use"

GB /T 3836.1-20 21 "General requirements for electrical equipment for explosive gas environments"

GB /T 3836. 2-20 21 "Explosionproof type " d " of electrical equipment for explosive gas environments "

GB /T 3836. 4 —20 21 "Intrinsic safety type "i" of electrical equipment for explosive gas environments"

GB/T 3836.31-2021 "Explosive atmospheres Part 31: Equipment protected by dust ignition resistant enclosure "t""

GB / T 50493-2019 "Design Standard for Detection and Alarm of Combustible and Toxic Gases in Petrochemical Industry"

●It has power display and low power alarm. When the power is low, it will remotely send out a power alarm to remind the user.

●Supports wireless transmission such as LoRa/NB-IOT.

● Optional supporting controller host can be networked to monitor 200 detectors at the same time .

● Support record storage and read records through data collection software.

●Automatic zero tracking, temperature compensation, multi-level calibration .

● Automatically identify and prevent concentration calibration errors.

● Anti-theft alarm .

Support infrared remote control operation

Detect gas	E X(combustible), CO(carbon monoxide), H2S(hydrogen sulfide), O2(oxygen), etc.
Application occasions	Gas stations, petroleum, chemical industry, pipeline network inspection, medicine, environmental protection, warehousing and other places where gas detection is required
examination range	0～100, 1000 , 5000, 50000 ppm,100%LEL, 20%, 50% and 100%Vol are optional. Other ranges can be customized.
resolution	0.01ppm (0～100ppm); 0.1ppm (0～1000ppm); 1ppm ( 0～1000 ppm and above); 0.1%LEL; 0.01%Vol
Detection principle	Low power consumption infrared, electrochemistry, laser, etc.
Detection accuracy	≤±2%FS (2% in full range), higher accuracy can be customized)
Display method	Wide viewing angleLCDdisplay
Operation method	Buttonor infraredoperation
Working power supply	DC3.6V
battery capacity	38Ah,57Ah, capacity can be customized
Usage environment	-40~+70℃; relative humidity ≤95%RH (non-condensing conditions) If used in condensation conditions, it must be customized or the usage environment must be specified when ordering.
Detectionmethod	diffusion
wireless mode	Optional wireless communication methods such asLora/NB-IOT
Alarm mode	On-site sound and light alarm
Implementation standards	GB15322.1-2019"Combustible Gas Detectors Part 1: Point Type Combustible Gas Detectors for Industrial and Commercial Use" GB/T 3836.1-2021"General requirements for electrical equipment for explosive gas environments" GB/T 3836.2—2021"Electrical equipment for explosive gas environments, explosion-proof type "d"" GB/T 3836.4-2021"Intrinsic safety type "i" of electrical equipment for explosive gas environments" GB/T 3836.31-2021 "Explosive atmospheres Part 31: Equipment protected by dust ignition resistant enclosure "t"" GB/T 50493-2019 "Design Standard for Detection and Alarm of Combustible and Toxic Gases in Petrochemical Industry"
interface language	Default Chinese interface, supports switching between Chinese and English interfaces
Dimensions	240×180×90mm (L×H×W) conventional air chamber 240×230×90mm (L×H×W) conventional with light	weight	2.5kg
Standard accessories	Instructions, certificate,warranty card,anti-theft infrared remote control
Optional accessories	Anti-theft buckle magnetic fixing screw
