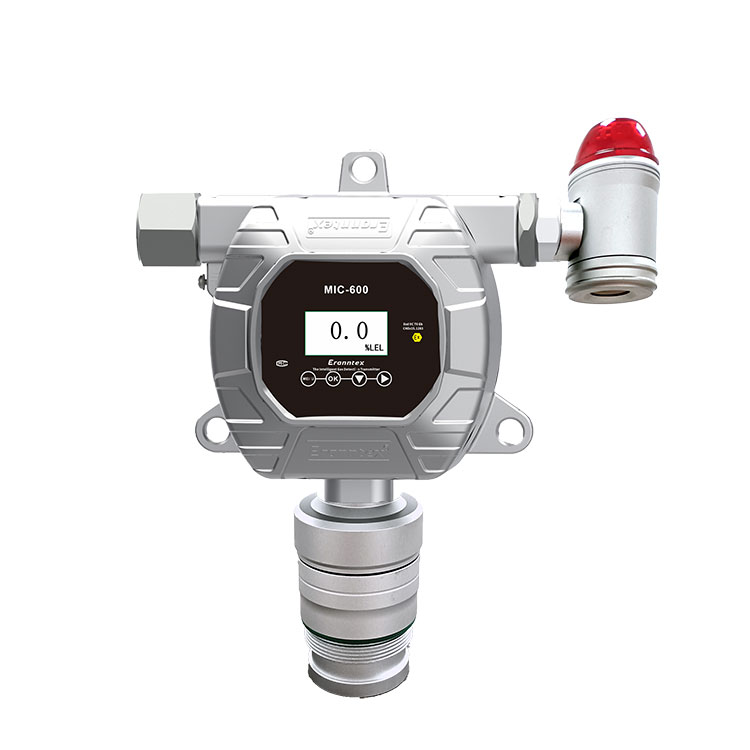

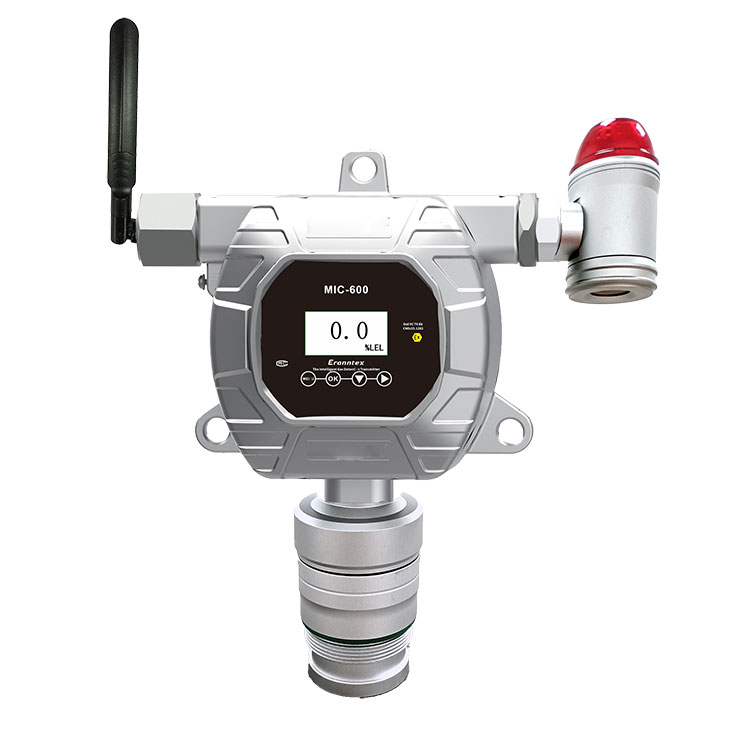

Magnetic Combustible Gas Alarm

Magnetic Combustible Gas Alarm is magnetically installed and can be quickly deployed for on-site combustible gas concentration monitoring. It displays concentration on site and audible and visual alarms for exceeding standards, and transmits remote data in real time. Adopt low-power LCD display and select combustible gas sensor based on low-power infrared principle, MIC-600-L

The battery-powered magnetic combustible gas sound and light alarm adopts ultra-low power consumption circuit design and mature core algorithm processing. Magnetic Combustible Gas Alarm has obtained a number of software patents and appearance patents, thus giving birth to a new generation of online low-voltage alarms that are currently leading in the industry. Power consumption gas detection alarm. MIC-600-L can detect confined spaces, large

Gas concentrations in the gas environment can also detect gas leaks. It is especially suitable for situations where no wiring is required. It is used for combustible gas detection alarms near gas pumps with mobile phone payment functions in gas stations. Mobile phone payment operations are only allowed when a flammable gas sound and light alarm device is installed.

Features of Magnetic Combustible Gas Alarm:

·Intrinsically safe circuit design, intrinsically safe explosion-proof and explosion-proof certification, high reliability and stability;

·Powered by lithium batteries, ultra-low power consumption circuit design and intelligent power consumption management, the equipment has ultra-long standby time and can support continuous operation for 2-5 years, and can be customized for longer periods;

·High-definition LCD screen display, real-time viewing of data on site;

·24-hour uninterrupted real-time monitoring, if the concentration exceeds the standard, an alarm will be issued immediately;

·Complies with EMI and EMC standards, and has passed national standard testing and CPA measuring instrument licensing certification.

Implementation standard: GB15322.1-2019

GB 3836.1-2010 "General requirements for electrical equipment for explosive gas environments"

GB 3836.2-2010 "Explosionproof Type "d" of Electrical Equipment for Explosive Gas Environments"

GB 3836.4-2010 "Intrinsic Safety Type "T" of Electrical Equipment for Explosive Gas Atmospheres"

·Magnetic Combustible Gas Alarm has power display and low power alarm. When the power is low, it will remotely send out a power alarm to remind the user to charge.

·Supports wireless transmission such as LoRa/NB-IOT/4G.

·The optional MIC3000 controller can monitor 1,000 detectors at the same time.

·Support record storage and read records through data acquisition software.

·Automatically track zero point to prevent drift, temperature compensation, multi-level calibration

·Concentration calibration errors are automatically identified and prevented.

Wide range of applications, covering 20+ industries
