UV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector
  • UV Ozone DetectorUV Ozone Detector

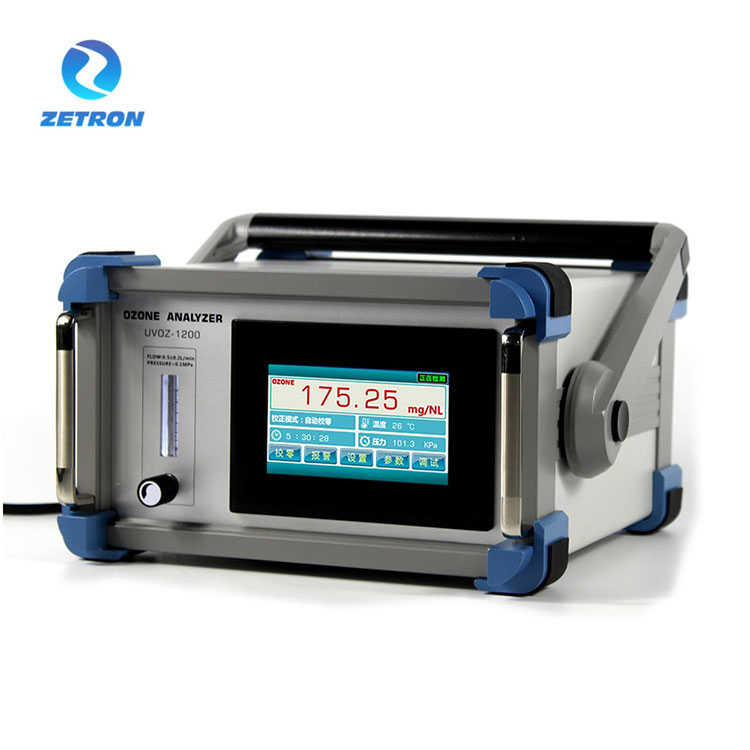

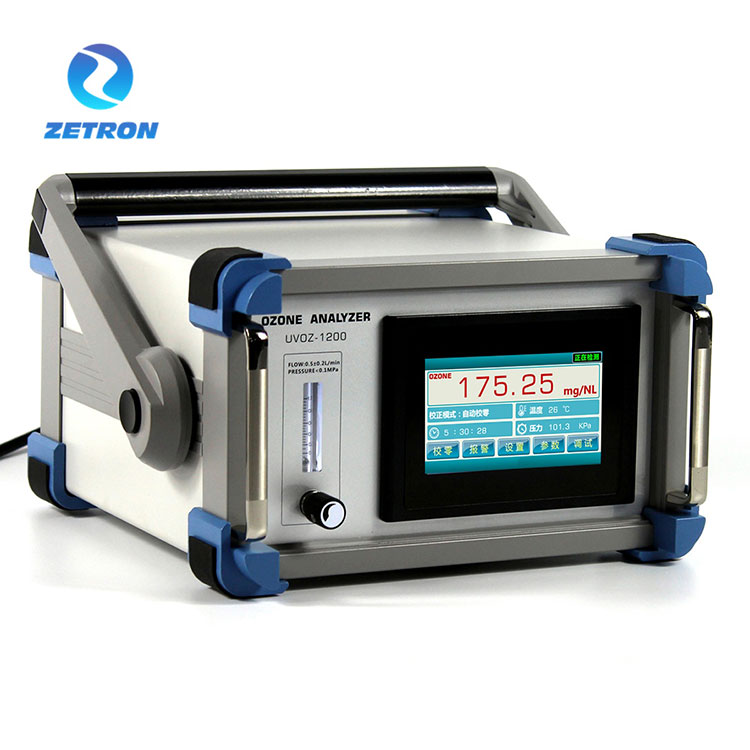

UV Ozone Detector

Detection principle: UV dual path absorption method, used for real-time detection of ozone generator outlet concentration or exhaust ozone concentration detection.
Measurement range: 0-300g/Nm3; 0-200g/Nm3; 0-100g/Nm3; 0-50g/Nm3.
Product features: This ozone gas concentration sensor has an automatic light source adjustment function inside, which can adjust the brightness of the LED light source in real time based on the reference light data of the zero point to ensure the stability of the zero point. This UV Ozone Detector can be connected in parallel or series to the outlet pipeline of the ozone generator (with pressure compensation), mainly used for analyzing and detecting the ozone concentration of the gas produced at the outlet of the ozone generator.

Model:PTM600OZ

Send Inquiry

General Description



UV Ozone Detector is a microprocessor-based dual beam photometer(UV 254 nm) for measuring the ozone content in air or oxygen.

To evaluate the ozone content in the sample gas theUVOZONE DETECTOR measures the UV radiation in the measurement channel, the UV radiation in the reference channel, the temperature and the pressure in the cuvette.

The ozone analyzer has touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with pressure & temperature compensation display. For the high concentration (g/Nm3) range, it has the function of flow input, which can display the output of the ozone generator in real time. The core component adopts long-life uv light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. It’s no need to close ozone inputing when zeroing to ensure the equipment can run continuously 24 hours.

The ozone concentration is displayed in either percent weight of ozone (%wt/wt), grams of ozone per normal cubic meter of sample gas (g/Nm3) or ppmv (AQ: g/m3 or ppm) on alphanumeric display. The concentration unit can be changed during operation.



Additional modifiable parameters are among others :



Unit of pressure display (kPa)

Alarm parameters (high/low threshold)

Nature of the carrier gas: air or oxygen (incl. PSA)

RS-485 interface parameters

4-20MA  signal output



Installation and Power Connection



For the sample gas connection 6 x 4 mm PTFE tubing should be used (which we will supply on request). The sample gas has to be connected via the sample gas filter ("IN"). The time lag of the concentration measurement depends on

a) the flow rate of the sample gas,

b) the length of the tubing to the analyzer,

c) the cross section of the tubing (we recommend tubing 6x4 mm, not more!),

d) the time lag of the analyzer itself. At the recommended flow rate of .2 to 1 l/min time lag will be 2 to 0.4 s with a 6 x 4 mm tubing length of 2 m.



The following drawings show possible configurations:







Sampling method: positive pressure sampling;



Display interface: 4.3-inch touch screen operation interface;

Content interface: Ozone concentration, temperature, pressure;

Auxiliary functions: temperature compensation, pressure compensation;

Display unit: g/Nm3, mg/NL optional;

Display resolution: 0.01g/Nm3;

Gas flow rate: 0.5L±0.2L/min;

Input pressure:<0.1MPa;

Concentration error: maximum 0.5% FS;

Linear error: maximum 0.5% FS;

Zero drift:<± 0.3%. FS;

Reaction time: ≤ 1 second;

Environmental temperature: -30~80 ℃;

Pipeline interface method: quick tightening (stainless steel);

Bypass sampling diameter: Φ 6 (6mm * 4mm);

Communication method: RS-485;

Output mode: 4-20mA (active);

Power supply: 24V DC;

Size: 120mm (height) × 160mm (width) × 60mm deep;

Note: 1mg/L=1g/m3=467PPM;

Free warranty: 24 months (for the host);

Standard configuration: anti-corrosion flow meter, ozone exhaust destructor, ozone intake (dust) filter.



Product features:



Measurement features: patented technology with zero point automatic adjustment function, dual path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.

Test method: Dual path UV absorption method, long-life light source system, high measurement accuracy.

Measurement principle: According to the Lambert Beer law, accurate measurements are made through the principle of photometric absorption.

Light source system: Foreign long-life ultraviolet light source system (ultraviolet LED light source with lens), with a free warranty of 2 years.

Usage: It is recommended to install and use it indoors, equipped with waterproof aviation plugs.

Light pool system: Separate light pool technology, leak free, high pressure resistance, and resistance to high flow sampling gas impact.

Intelligent compensation: Built in temperature and pressure compensation and display, with automa



The Structure

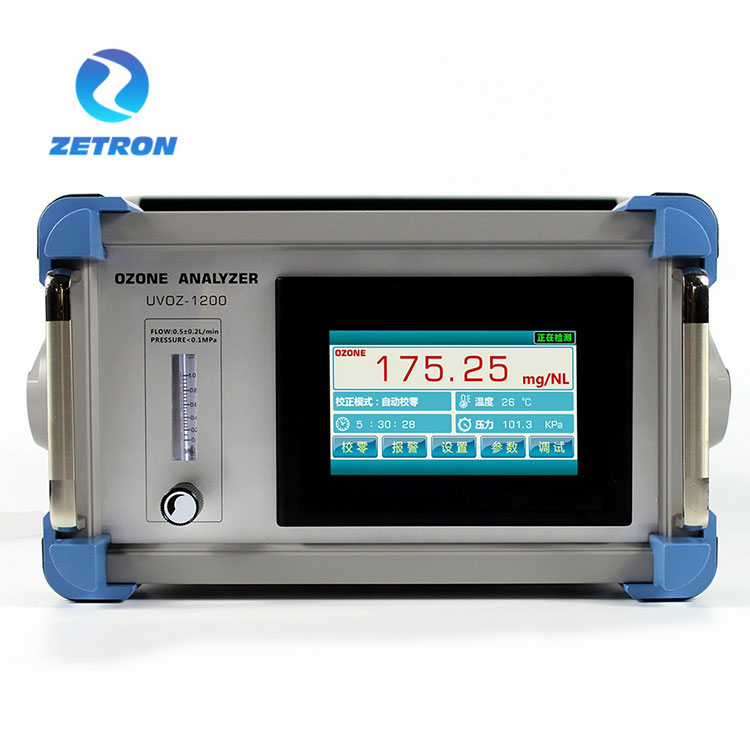

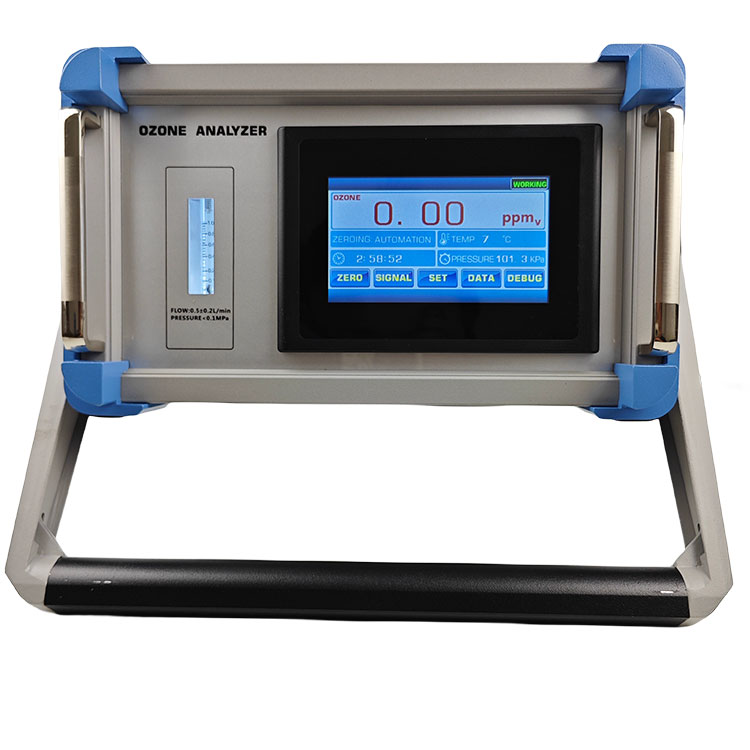

Display panel and display screen





Power input, signal output, ozone inlet, ozone outlet


Power input:

(01) 24V DC+

(02) 24V DC-

Signal terminal output:

(01)RS485+(MODBUS)

(03)4-20MA+

(02)RS485-  (MODBUS)

(04)4-20MA-





The connection and process







UV OZONE DETECTOR, parallel branch sampling connection diagram

(Note: It is recommended to use this connection process, separate sampling, and exhaust the atmosphere after passing through the ozone exhaust destruction device.)





UV OZONE DETECTOR, series sampling connection diagram

(Note: When using this connection process, it is important to note that the pressure in the outlet pipeline of the ozone generator must be stable. The built-in pressure transmitter compensation will cause the detected ozone concentration value to fluctuate within a certain range.)
