Ozone Detector
  • Ozone DetectorOzone Detector

Ozone Detector

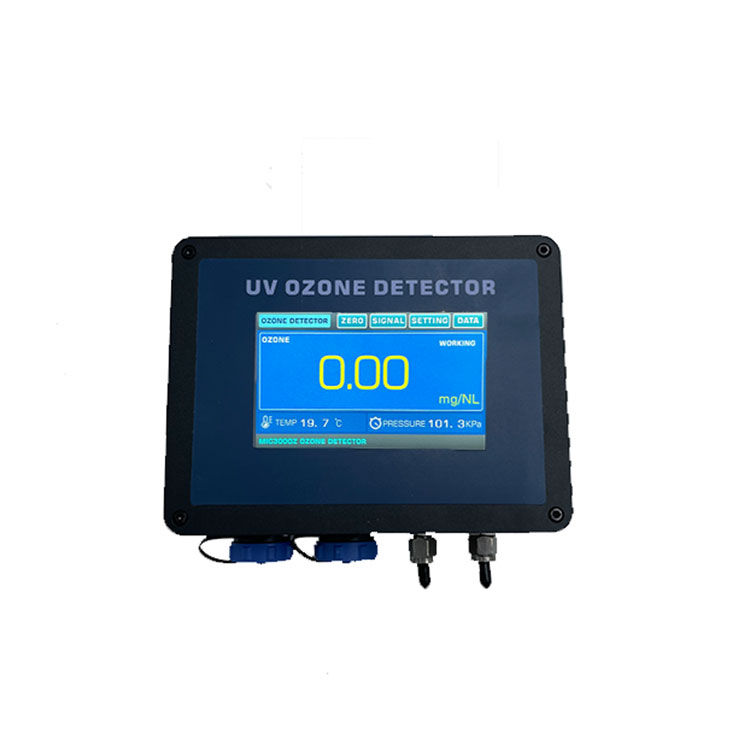

MIC300OZ OZONE DETECTOR is a microprocessor-based dual beam photometer(UV 254 nm) for measuring the ozone content in air or oxygen.

Send Inquiry

MIC300OZ OZONE DETECTOR is a microprocessor-based dual beam photometer(UV 254 nm) for measuring the ozone content in air or oxygen.

To evaluate the ozone content in the sample gas the MIC300OZ OZONE DETECTOR measures the UV radiation in the measurement channel, the UV radiation in the reference channel, the temperature and the pressure in the cuvette.

The ozone analyzer has touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with pressure & temperature compensation display. For the high concentration (g/Nm3) range, it has the function of flow input, which can display the output of the ozone generator in real time. The core component adopts long-life uv light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. It’s no need to close ozone inputing when zeroing to ensure the equipment can run continuously 24 hours.

The ozone concentration is displayed in either percent weight of ozone (%wt/wt), grams of ozone per normal cubic meter of sample gas (g/Nm3) or ppmv (AQ: g/m3 or ppm) on alphanumeric display. The concentration unit can be changed during operation.

Application fields: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry food and drinking water industry, space disinfection industry, swimming pool disinfection industry, fragrance essence synthesis industry and other ozone generator industry.


Features



Measurement features: patented technology with zero point automatic adjustment function, dual path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.

Test method: Dual path UV absorption method, long-life light source system, high measurement accuracy.

Measurement principle: According to the Lambert Beer law, accurate measurements are made through the principle of photometric absorption.

Light source system: Foreign long-life ultraviolet light source system (ultraviolet LED light source with lens), with a free warranty of 2 years.

Usage: It is recommended to install and use it indoors, equipped with waterproof aviation plugs.

Light pool system: Separate light pool technology, leak free, high pressure resistance, and resistance to high flow sampling gas impact.

Intelligent compensation: Built in temperature and pressure compensation and display, with automa



Product structure composition



INLET - IN: The inlet of the ozone analyzer in series in the ozone pipeline, if bypass sampling is done as ozone inlet.

INLET-OUT: The outlet of the ozone analyzer in series in the ozone pipeline, if bypass sampling is done, this outlet will be blocked.

OUTLET-OUT: The outlet of the ozone analyzer, which has built-in ozone destroyer, the outlet has no ozone smell and can be discharged indoors.


Signal terminal output:


(01)4-20MA+ current signal output

(08)ALARM LOW :NO Low alarm point - normally open

(02)4-20MA- current signal output

(09)ALARM LOW:COM Low alarm point - common

(03)RS485+ communication interface

(10)ALARM LOW:NC Low alarm point-normally closed

(04)RS485- communication interface

(11)FLOW SIGNAL+ FLOW SIGNAL+ Yield calculation flow signal access

(05)ALARM HIGH:NO High alarm point - normally open

(12)Flow signal - FLOW SIGNAL - Yield calculation flow signal access

(06)ALARM HIGH:COM High Alarm Point - Common

(13)Function interface + FUNCTION+ Reserved function: Ozone generator deployment

(07)ALARM HIGH:NC High Alarm Point-Normally Closed

(14)Function interface - FUNCTION- Reserved function: Ozone generator deployment


Selectable ranges and operating modes:


Range

Sampling Method

Application Areas

0-300g/Nm3

Active pressure sampling, with pressure,temperature compensation

Real-time detection of ozone generator outlet concentration

0-100g/Nm3

Active pressure sampling, with pressure,temperature compensation

Real-time detection of ozone generator outlet concentration

0-50g/Nm3

Active pressure sampling, with pressure,temperature compensation

Real-time detection of ozone generator outlet concentration



MIC300OZ Ozone detector - positive pressure sampling connection process:



MIC300OZ Ozone gas concentration analyzer - negative pressure sampling connection process:
