Dissolved Ozone Sensor

Detection principle: UV dual-path absorption method, used for analysis and detection of dissolved ozone water concentration in tap water, pure water or semiconductor industry.

Measuring range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.

Product features: This UV dissolved ozone analyzer has an automatic light source adjustment function, which can adjust the LED light source brightness in real time according to the reference light data of the zero point to ensure the stability of the zero point. This UV optical ozone water concentration analyzer can be connected in parallel or in series with the dissolved ozone water pipeline, mainly used for analysis and detection of dissolved ozone water concentration in tap water, pure water or semiconductor industry.

This dissolved ozone analyzer has an automatic adjustment system with UV light source, which can adjust the brightness of the UV LED light source in real time according to the reference light data to keep the zero point data constant to ensure the stability of the zero point. It is a patented product of our company. This UV optical ozone water concentration analyzer can run continuously for 24 hours without stopping.

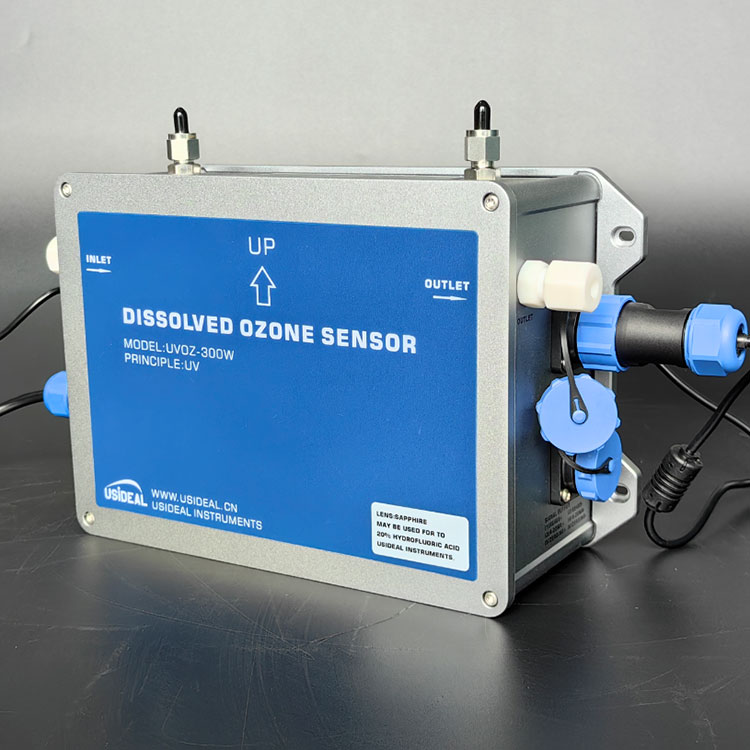

UVOZ-300W Dissolved ozone water concentration analyzer - Product overview

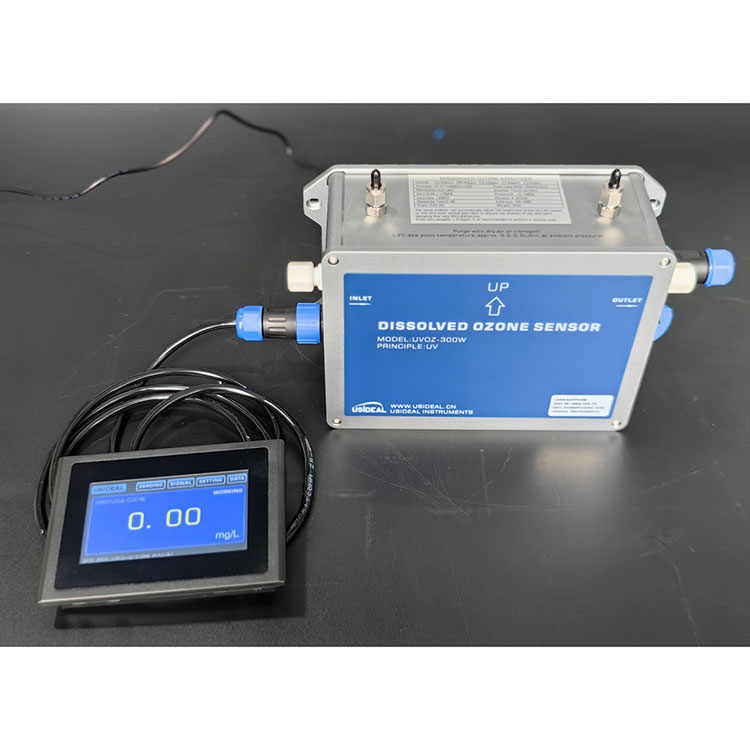

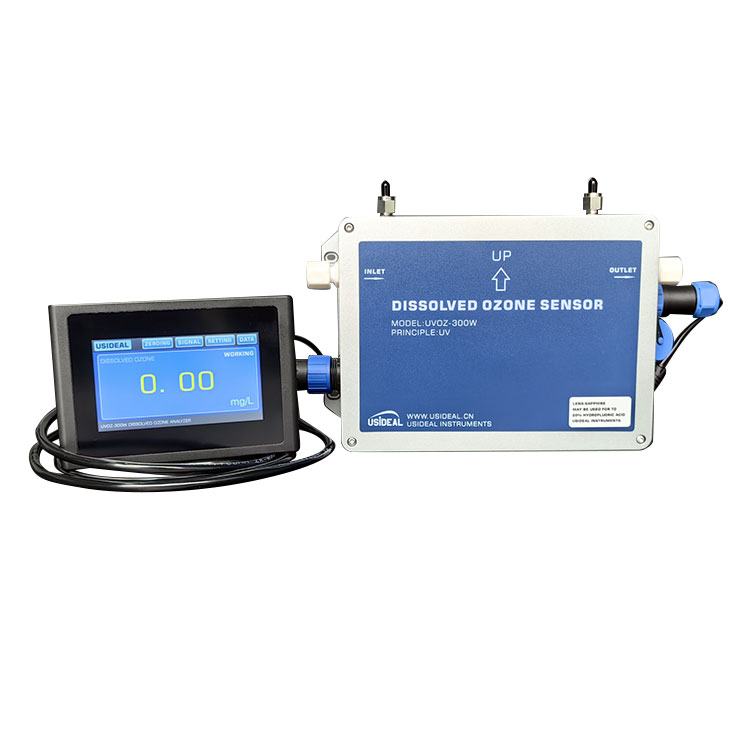

The UVOZ-300W dissolved ozone water concentration analyzer is a UV photometer that directly measures the ozone content of ultrapure water or constant turbidity water. The customizable version UVOZ-300W-HF can be used for 20% hydrofluoric acid ozone aqueous solution. The materials in contact with ozone water are: PTFE, FFPM, PFA and quartz or sapphire. The UVOZ-300W dissolved ozone water concentration analyzer has a water inlet and outlet and is equipped with a touch screen operation interface. The output is directly connected to the PLC with 4-20mA and RS-485 signal lines.

The UVOZ-300W dissolved ozone water concentration analyzer has an automatic adjustment system with a UV light source, which can adjust the brightness of the UV LED light source in real time according to the reference light data to keep the zero point data constant and ensure the stability of the zero point. It is a patented invention product of our company. This ozone analyzer can run continuously for 24 hours without stopping. The superior stability of this ozone concentration analyzer is achieved by using a true dual-beam optical system with an extremely long-life UV LED light source.

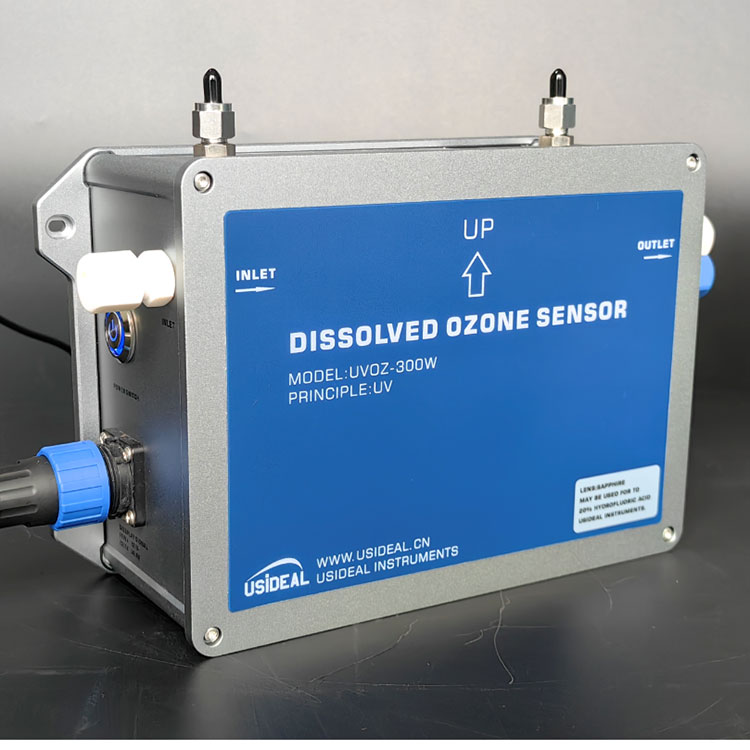

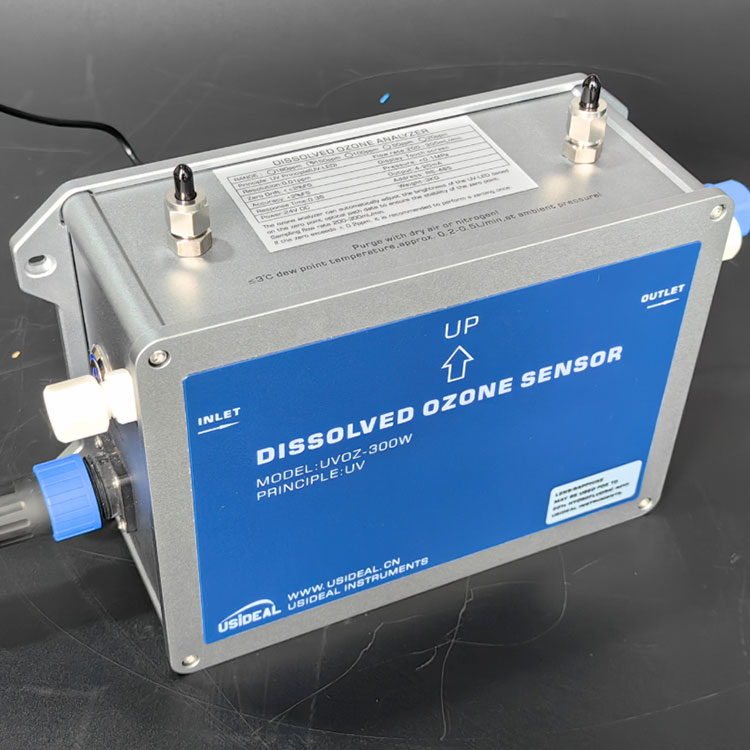

The UVOZ-300W dissolved ozone water concentration analyzer shell is a splash-proof aluminum shell with a protection level of IP65, dimensions of 200x150x80mm (WxHxD), and a weight of about 3 kg. This dissolved ozone water concentration analyzer can be wall-mounted, with a hook design on the back for installation, and four mounting brackets are provided.

The water inlet flow rate of the dissolved ozone water concentration analyzer is 200-300ml/min. If the flow rate needs to be controlled, a throttle valve or flow meter must be installed at the outlet of the dissolved ozone water concentration analyzer. The throttle valve must be located behind the sensor (never in front of it! Because bubbles will be generated when a throttle valve is installed at the water inlet, ozone water with water bubbles is strictly prohibited from entering the dissolved ozone water analyzer.)

The cleanliness of the water inlet of the dissolved ozone water concentration analyzer must be maintained, and the cleanliness of the internal sensor of the dissolved ozone water analyzer must be maintained. The dissolved ozone water concentration analyzer is recommended to be calibrated once every 2 weeks. When calibrating the zero point, clear water without ozone and color must be passed.

UVOZ-300W Dissolved Ozone Water Concentration Analyzer - Product Features:

Test method: dual-path ultraviolet absorption method, long-life light source system, high measurement accuracy.

Measurement principle: Based on the Lambert-Beer law, accurate measurement is performed through the principle of photometric absorption.

Measuring range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.

Light source system: foreign long-life ultraviolet light source system (wavelength 253.7nm), free warranty for 3 years.

Usage: indoor installation and use, equipped with waterproof aviation plug terminal.

Light pool system: separate light pool technology, no leakage, high pressure resistance, and resistance to large flow sampling liquid impact.

Intelligent compensation: with automatic zero adjustment and automatic light source compensation function.

Operation method: manual zero calibration is available. When zeroing, ensure that there is no ozone aqueous solution in the instrument.

Display unit: mg/L, ppm optional.

Data display: high-definition color touch screen.

Output function: 4-20mA, RS485 communication.

Automatic zero adjustment: It can adjust the brightness of the UV LED light source in real time according to the reference light data to keep the zero point data constant and ensure the stability of the zero point.

Multiple versions: UVOZ-300W is used for tap water and purified water. UVOZ-300W-HF can be used for 20% hydrofluoric acid ozone aqueous solution.

UVOZ-300W dissolved ozone water concentration analyzer - Technical parameters:
