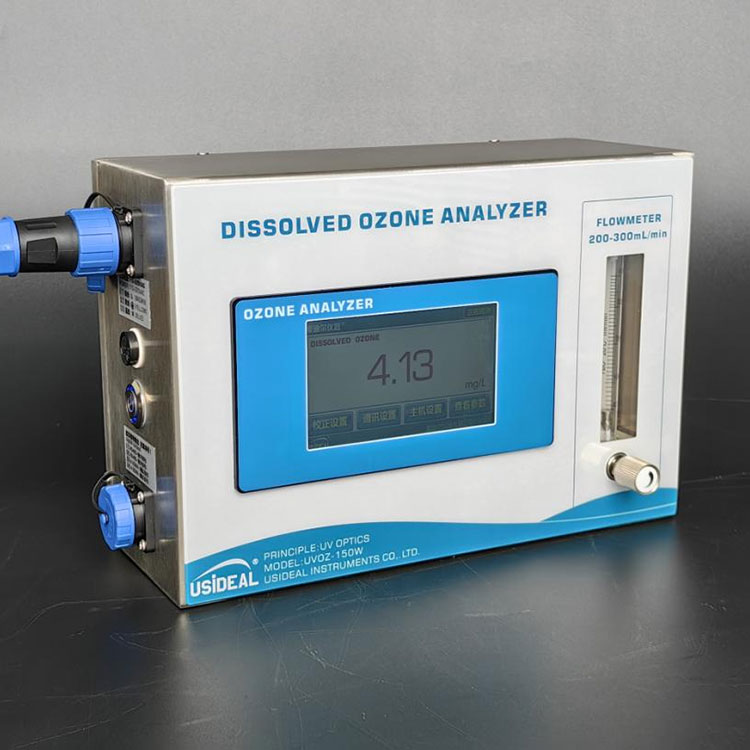

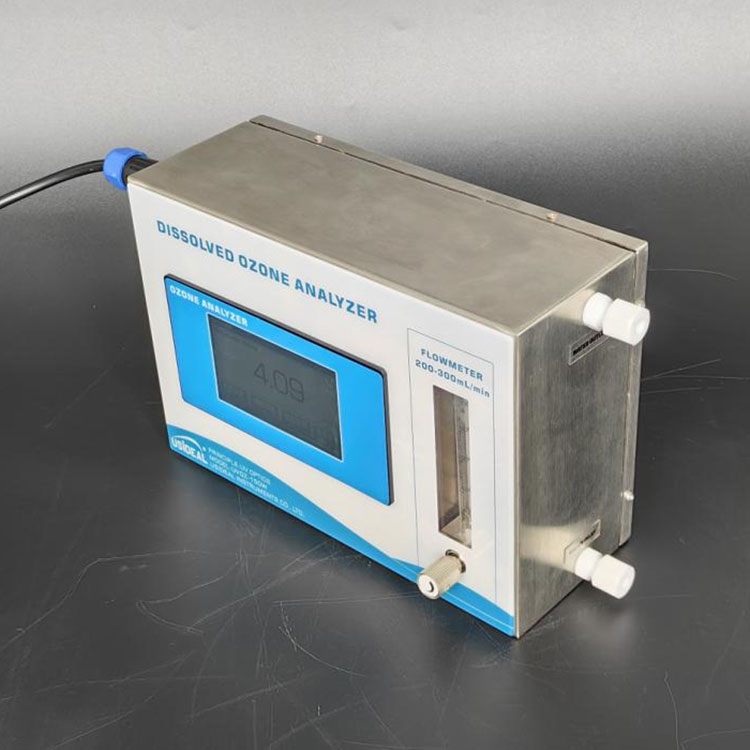

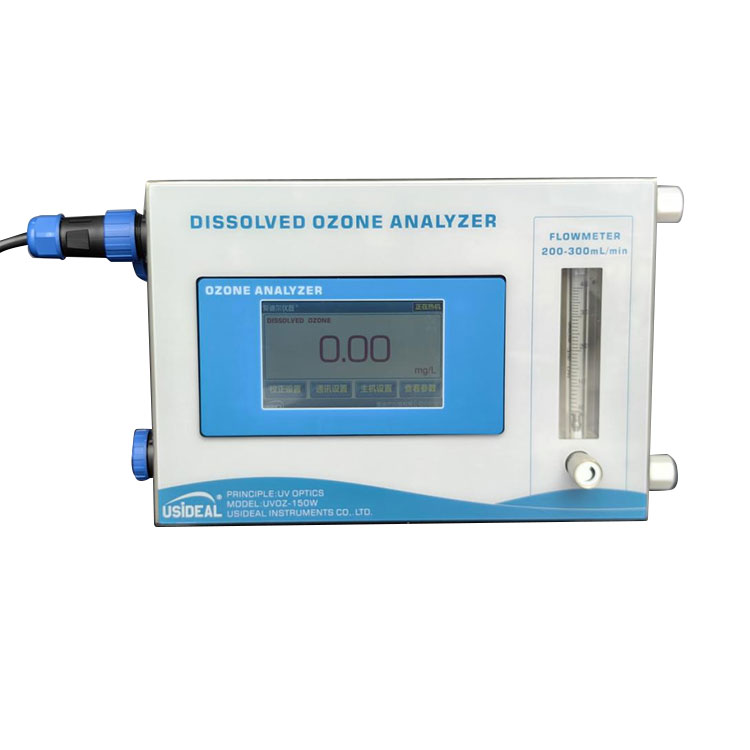

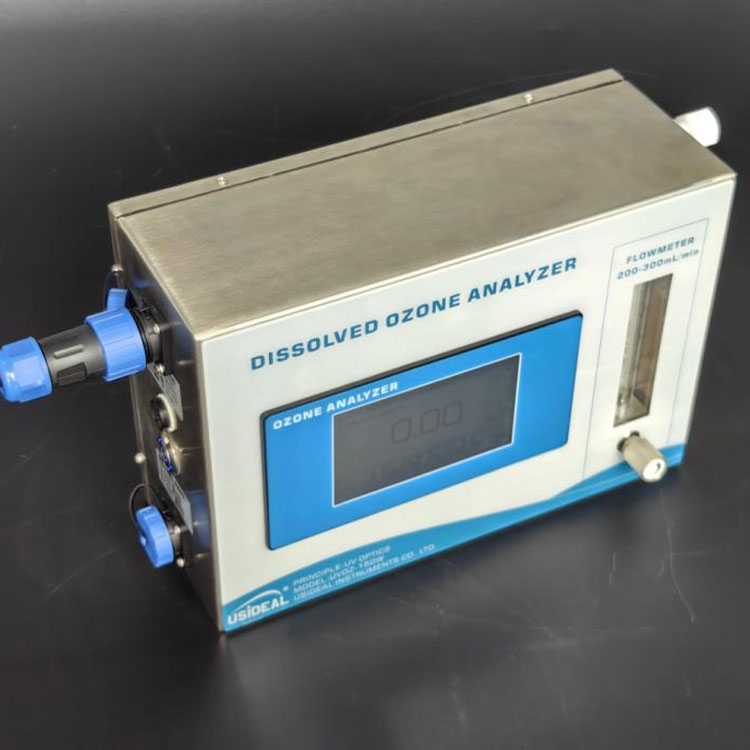

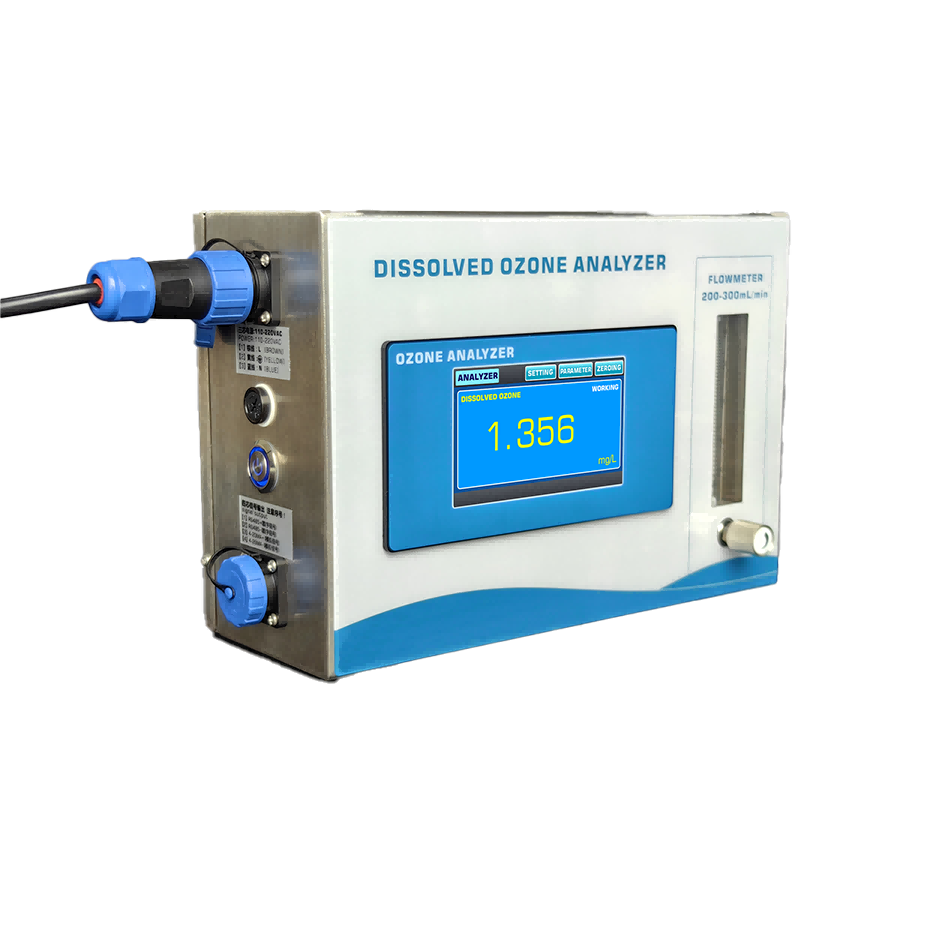

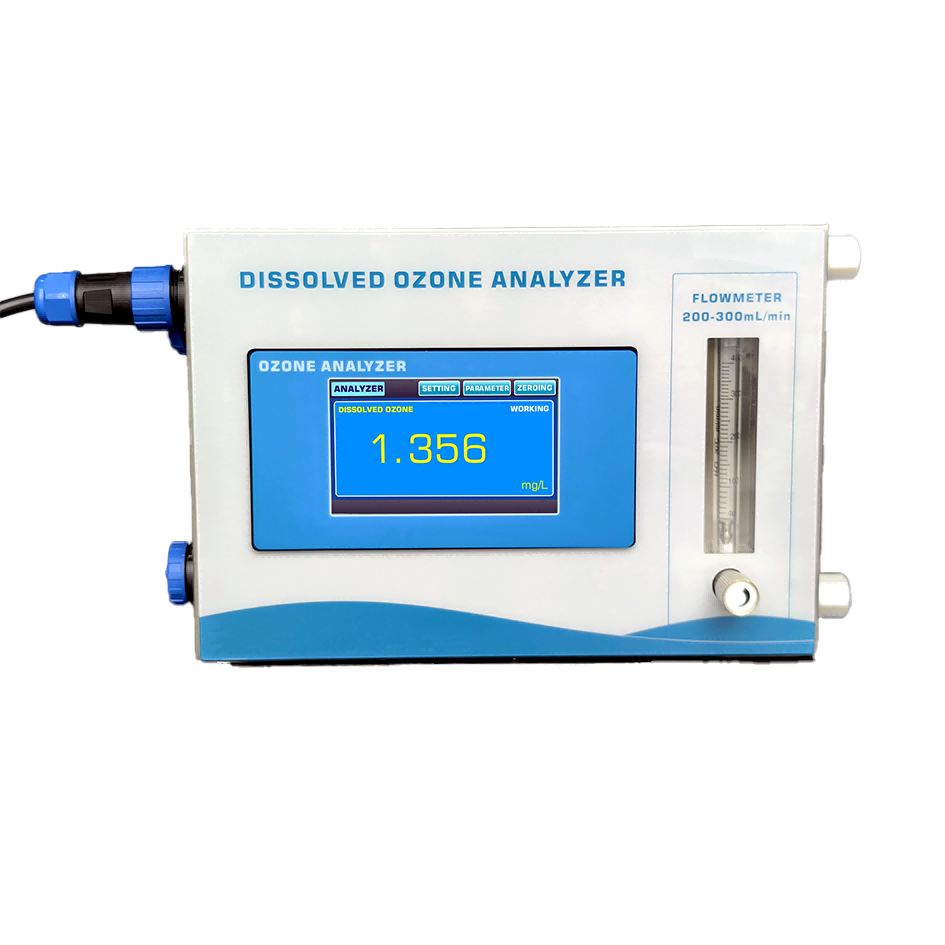

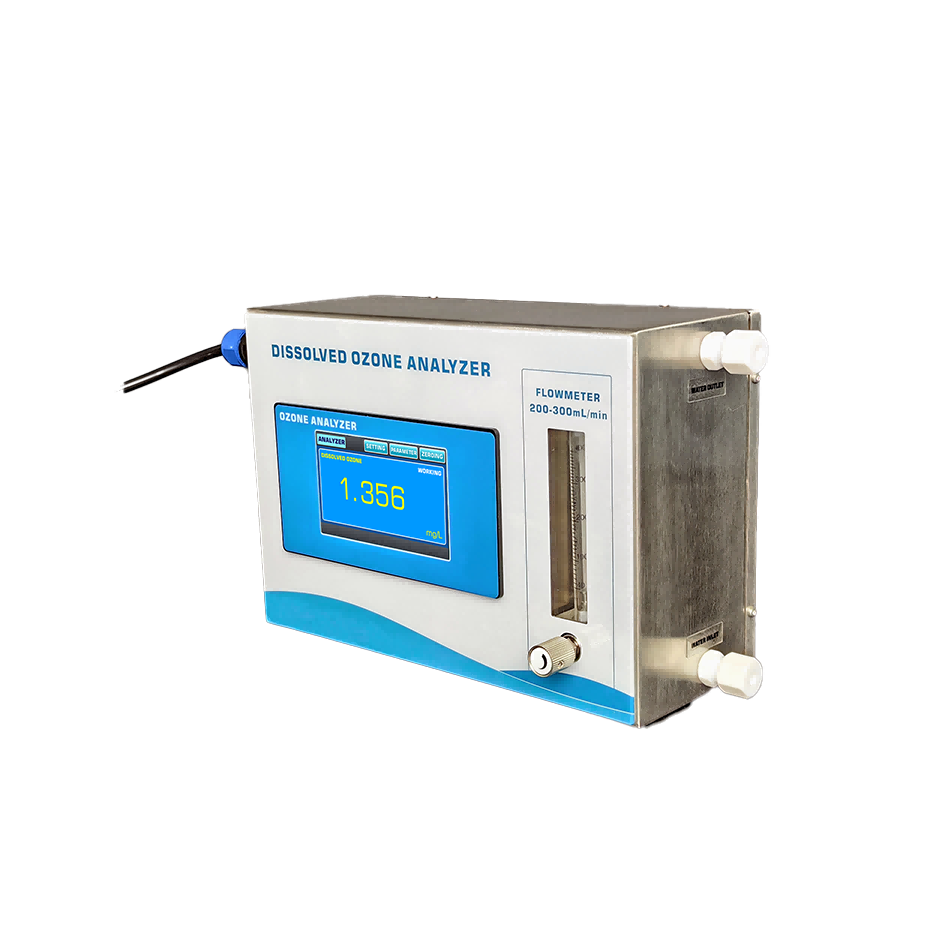

Dissolved Ozone Water Concentration Analyzer

Dissolved Ozone Water Concentration Analyzer Detection principle: UV dual-path absorption method, used for analysis and detection of dissolved ozone water concentration in pure water or semiconductor industry.
Measuring range: 0-50ppm; 0-100ppm; 0-200ppm; 0-300ppm

Send Inquiry

Dissolved Ozone Water Concentration Analyzer features: patented process, with UV light source automatic adjustment system to adjust the stability of light source in real time, dual-path UV absorption principle, foreign long-life UV LED light source, continuous operation to ensure the stability of detection concentration.

UVOZ-150W Dissolved Ozone Water Concentration Analyzer Technical parameters:

Measuring range	0-200ppm;
Measuring range	0-50ppm; 0-100ppm; 0-200ppm; 0-300ppm;
Light source life	about 30000-50000 hours;
Sampling method	positive pressure sampling, negative pressure sampling, note	all sampling methods must be equipped with pumps, valves, flow meters at the outlet;
Ozone contact materials	quartz, PTFE, PTFE, PTFE, FFPM (HF vers. Sapphire, PTFE, PFA, FFPM);
Display interface	4.3-inch touch screen operation interface;
Display unit	g/m3, mg/L, ppm optional;
Display resolution	0.01ppm;
Sampling flow	200-300mL/min;
Input pressure	<0.1MPa;
Concentration error	maximum 0.3% FS;
Linear error	Maximum 0.2% FS;
Zero drift	<±0.3%.FS;
Ambient temperature	0-50℃;

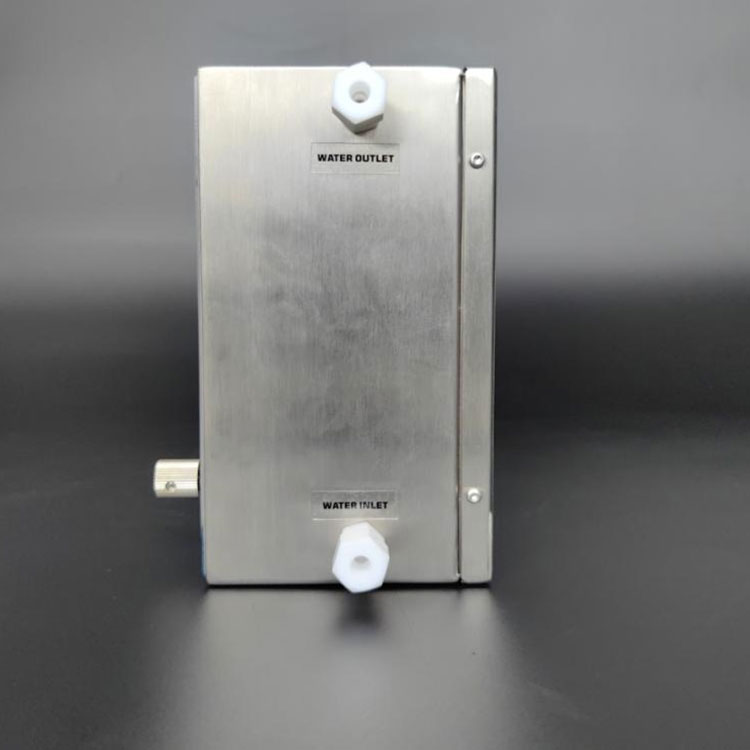

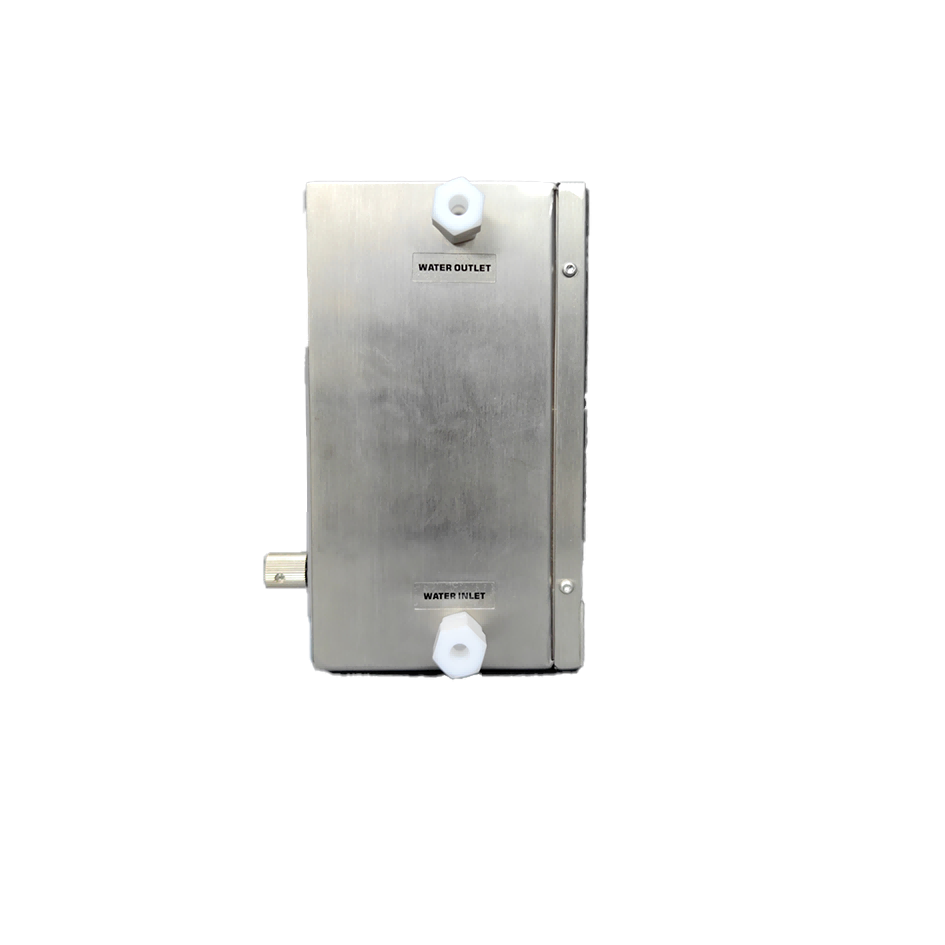

Interface	quick-twist (PTFE);
Sampling diameter	Φ6 (6mm*4mm);

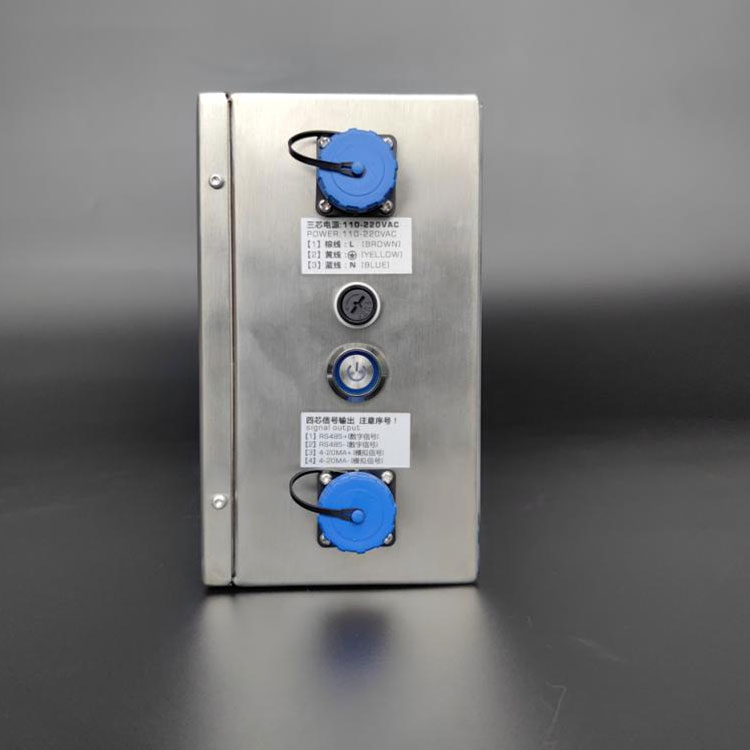

Communication	RS-485;
Output	4-20mA (active);

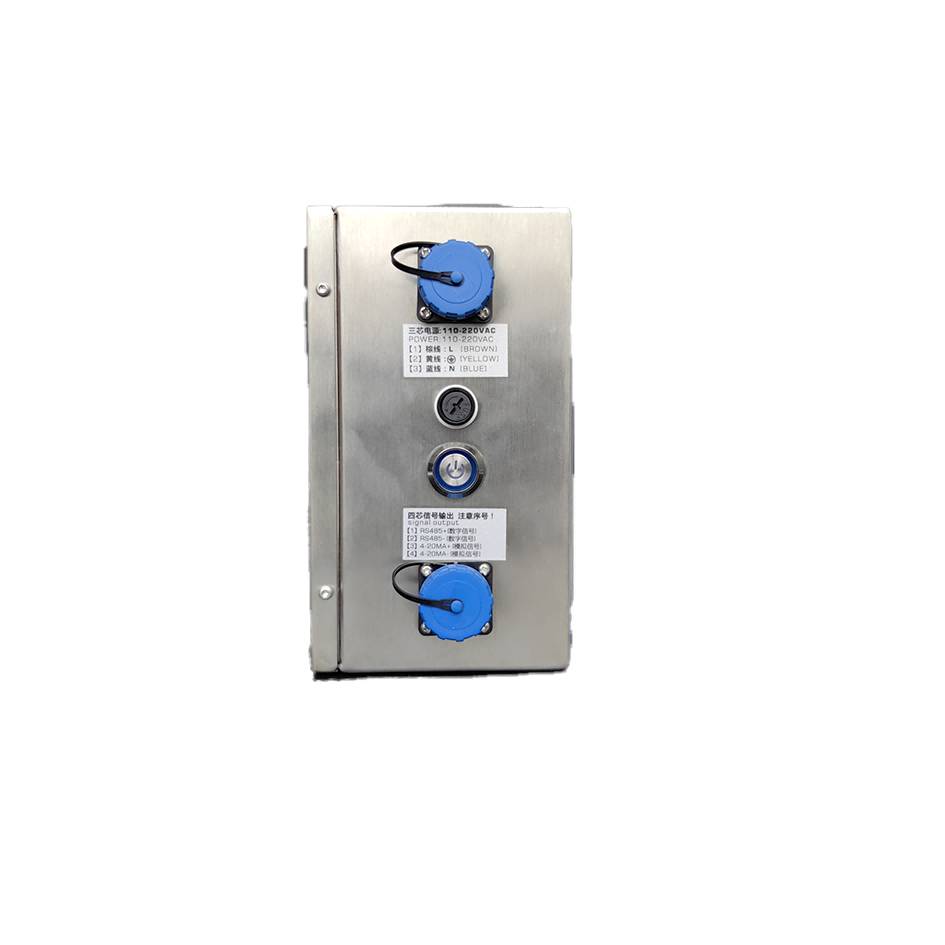

Power supply	220V AC (optional 24VDC);
Dimensions	180mm (height) × 260mm (width) × 90mm (depth);
Weight	3KG
Free warranty	24 months (host);
