Dissolved Ozone Analyzer

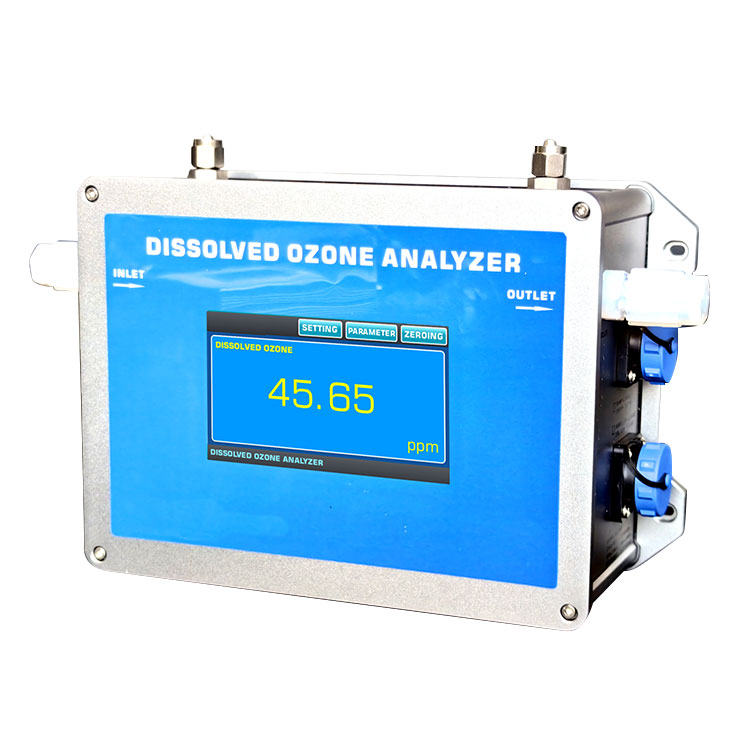

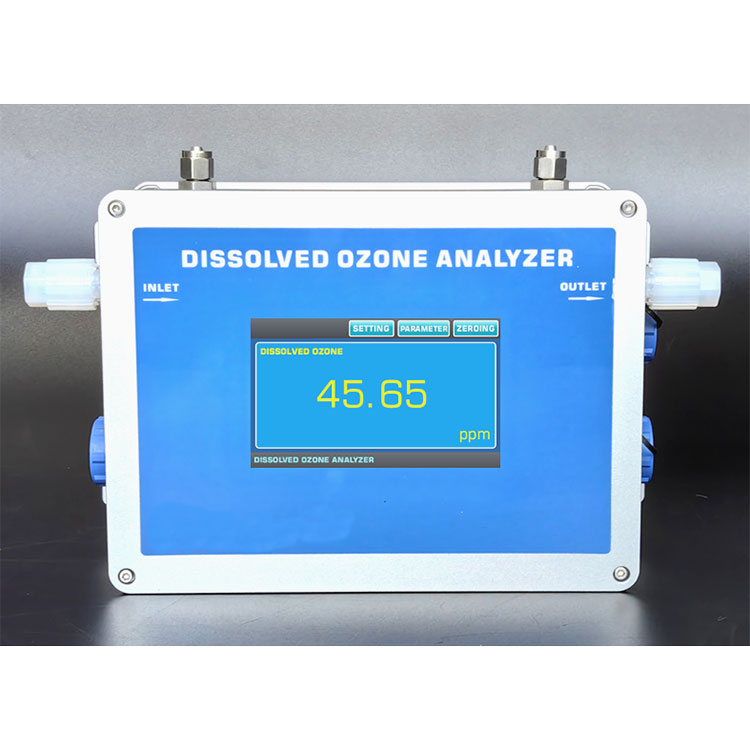

DISSOLVED OZONE ANALYZER

Detection principle: UV dual path absorption method, used for analysis and detection of dissolved ozone water concentration in tap water, pure water, or semiconductor industry.

Measurement range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.

Product features: This UV dissolved ozone analyzer has an internal light source automatic adjustment function, which can adjust the brightness of the LED light source in real-time based on the reference light data of the zero point to ensure the stability of the zero point. This UV optical ozone water concentration analyzer can be connected in parallel or series to the dissolved ozone water pipeline, mainly used for the analysis and detection of dissolved ozone water concentration in tap water, pure water, or semiconductor industries.

This dissolved ozone analyzer has an automatic adjustment system function with a UV light source, which can adjust the brightness of the UV LED light source in real-time according to the reference light data to maintain constant zero point data, ensuring the stability of the zero point. It is a patented product of our company. This UV optical ozone water concentration analyzer can operate continuously without stopping for 24 hours.

Dissolved Ozone Analyzer - Product Overview

The dissolved ozone concentration analyzer is a direct measurement of ozone content in ultrapure water or constant turbidity water using ultraviolet spectrophotometry. The customizable version is HF, which can be used for 20% hydrofluoric acid ozone aqueous solution. Materials in contact with ozone water include PTFE, FFPM, PFA, and quartz or sapphire. The UVOZ-180W dissolved ozone water concentration analyzer is equipped with an inlet and outlet, and is equipped with a touch screen operation interface. The output is directly connected to the PLC with 4-20mA and RS-485 signal lines.

The dissolved ozone concentration analyzer has an automatic adjustment system function with a UV light source, which can adjust the brightness of the UV LED light source in real-time according to the reference light data to maintain constant zero point data, ensuring the stability of the zero point. It is a patented product of our company. This ozone analyzer can operate continuously without stopping for 24 hours. The superior stability of this ozone concentration analyzer is achieved through the use of a true dual beam optical system and an extremely long-lived ultraviolet LED light source.

The shell of the dissolved ozone concentration analyzer is an aluminum shell with splash proof design, protection level: IP65, size: 260x160x90mm (WxHxD), and weight of about 3 kilograms. This dissolved ozone water concentration analyzer can be wall mounted, with a hook design on the back. When installation is required, four mounting brackets are provided.

The inlet flow rate of the dissolved ozone water concentration analyzer is 200-300ml/min. If flow control is required, a throttle valve or flow meter must be installed at the outlet of the dissolved ozone water concentration analyzer. This throttle valve must be positioned behind the sensor (never in front of it! Installing a throttle valve at the inlet will generate bubbles, so it is strictly prohibited for ozone water with water bubbles to enter the dissolved ozone water analyzer.)

It is necessary to maintain the cleanliness of the inlet water of the dissolved ozone water concentration analyzer, and to maintain the cleanliness of the internal sensors of the dissolved ozone water analyzer. It is recommended to calibrate the zero point of the dissolved ozone water concentration analyzer every 2 weeks. When calibrating the zero point, clean water without ozone or color should be introduced

Dissolved ozone analyzer - Product features:

Test method: Dual path UV absorption method, long-life light source system, high measurement accuracy.

Measurement principle: According to the Lambert Beer law, precise measurement is carried out through the principle of photometric absorption.

Measurement range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.

Light source system: Foreign long-life ultraviolet light source system (wavelength 253.7nm), with a free warranty of 3 years.

Usage: Indoor installation and use, equipped with waterproof aviation plug terminals.

Light pool system: Separate light pool technology, leak free, high pressure resistance, and resistance to high flow rate sampling liquid impact.

Intelligent compensation: equipped with automatic zero adjustment and automatic light source compensation function.

Operation method: It can be manually zeroed, and during zeroing, it is necessary to ensure that there is no ozone aqueous solution in the instrument.

Display unit: mg/L, ppm optional.

Data display: High definition color touch screen.

Output function: 4-20mA, RS485 communication.

Automatic zero adjustment: It can adjust the brightness of the ultraviolet LED light source in real-time based on the reference light data to maintain a constant zero point data, ensuring the stability of the zero point.

Multiple versions:

The normal version is used for tap water and purified water.

The HF version can be used for 20% hydrofluoric acid ozone aqueous solution.

Dissolved ozone analyzer - Product structure and composition

【1】Wall mounted installation dimensions

【2】Display panel and display screen

【3】Power input, signal output, inlet and outlet

Power input:

Signal terminal output:

DISSPLAY SIGNAL terminal: used to connect remote display signals (this machine already has a display screen)

The gas interface above the UV dissolved ozone water analyzer is used for compressed air interface. If the temperature of the ozone water is too low, it is recommended to introduce compressed air to the instrument to prevent condensation in the internal ozone water pipeline of the instrument.

Dissolved ozone analyzer - Product connection process diagram

Dissolved ozone analyzer - positive pressure branch sampling connection diagram

(It is recommended to use this connection process for split sampling. Note that the flow meter needs to be installed at the outlet of the dissolved ozone water analyzer.)

Dissolved ozone analyzer, negative pressure water pump sampling connection diagram

(It is recommended to use this connection process for split sampling. Note that the flow meter needs to be installed at the outlet of the dissolved ozone water analyzer.)

Note: The manufacturer of the dissolved ozone water flow meter is a standard configuration accessory, and the negative pressure water pump is an optional product. You can consult the manufacturer to purchase it separately.

Note: Without display version, the manufacturer will separately configure wired touch screen accessories (wire length within 2 meters)

Dissolved ozone analyzer - Technical parameters:
