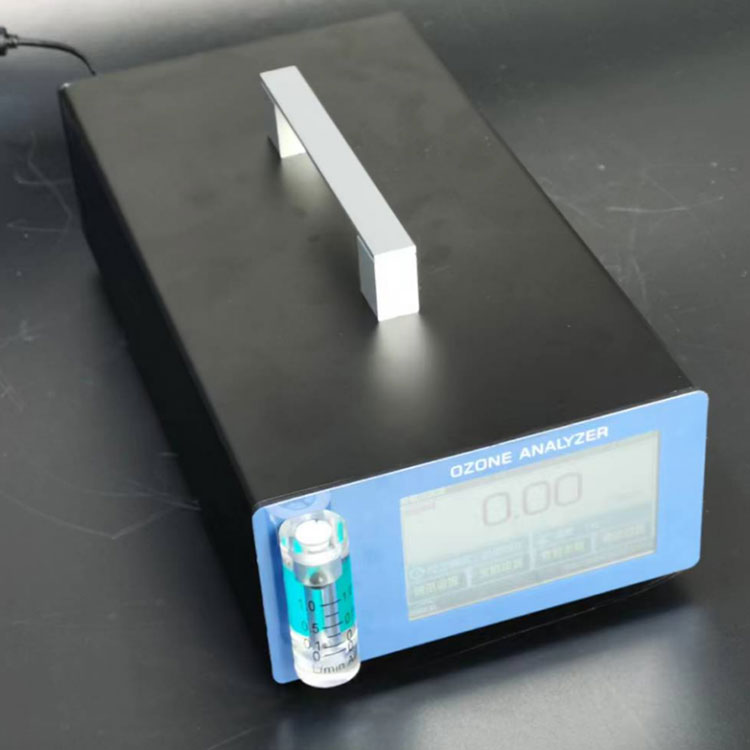

Desktop Ozone Gas Concentration Analyzer

The ozone analyzer has a touch screen operation interface, which displays the concentration of ozone gas in real time, has pressure and temperature compensation and display, and can set the automatic zeroing time and manual zeroing mode. The core components use a long-life ultraviolet light source system and a high-transmittance quartz plate to ensure the stability of the zero point and prevent zero drift from affecting the accuracy of the detection concentration. The pressure-resistant and impact-resistant independent light pool structure designed according to foreign light pool technology keeps the gas flow, pressure, and flow rate unchanged during the zeroing operation to prevent the impact of airflow on the zeroing. The zeroing operation can be completed without shutting down the ozone intake, ensuring that the equipment can run continuously 24 hours a day.

Application areas: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, flavor synthesis industry and other industries using ozone generators.

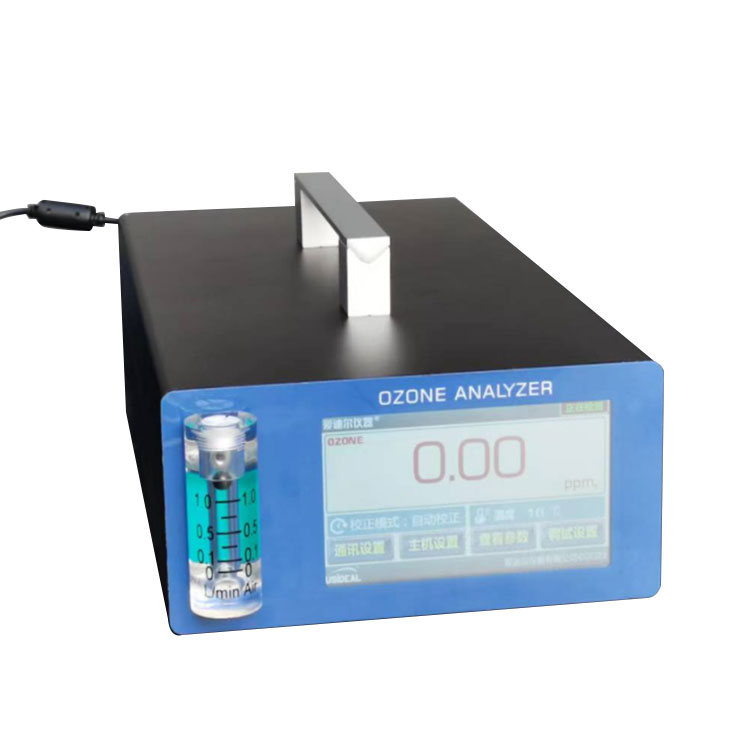

UVOZ-1100D ozone gas analyzer, with optional range and working mode

Product features:

Test method: UV absorption method, long-life light source system, high measurement accuracy.

Measurement principle: Based on the Lambert-Beer law, accurate measurement is performed through the principle of photometric absorption.

Light source system: Foreign long-life UV light source system, free warranty for 2 years.

Usage: Indoor installation and use, equipped with power supply and signal terminals.

Light pool system: Separate light pool technology, no leakage, high pressure resistance, and resistance to large flow sampling gas impact.

Intelligent compensation: built-in temperature and pressure compensation and display, with automatic light source compensation function.

Operation method: Users can choose manual zeroing and automatic zeroing according to the operating status, and can set the automatic zeroing time.

Display unit: ppm, mg/Nm3 optional.

Data display: high-definition color touch screen.

Output function: 4-20mA, RS485 communication, relay alarm point output, etc.

Standard configuration: ozone exhaust destroyer, air intake filter.

Note: 1mg/L=1g/m3=467PPM;

Free warranty: 12 months (main unit);

Note: Built-in ozone exhaust destructor, standard air intake filter.
