Air Flow Capture Hood

ACH-1 Air Flow Capture Hood is an instrument used to measure the air volume flowing through air-outlet, diffusers and grilles. It is easy to operate; it has a high accuracy and reliability which ensures the measurement is accurate, and the results can be saved. We provide gas detector OEM/ODM serves.

Model:ACH-1

Send Inquiry

Product Description
Parameter
Application
Video

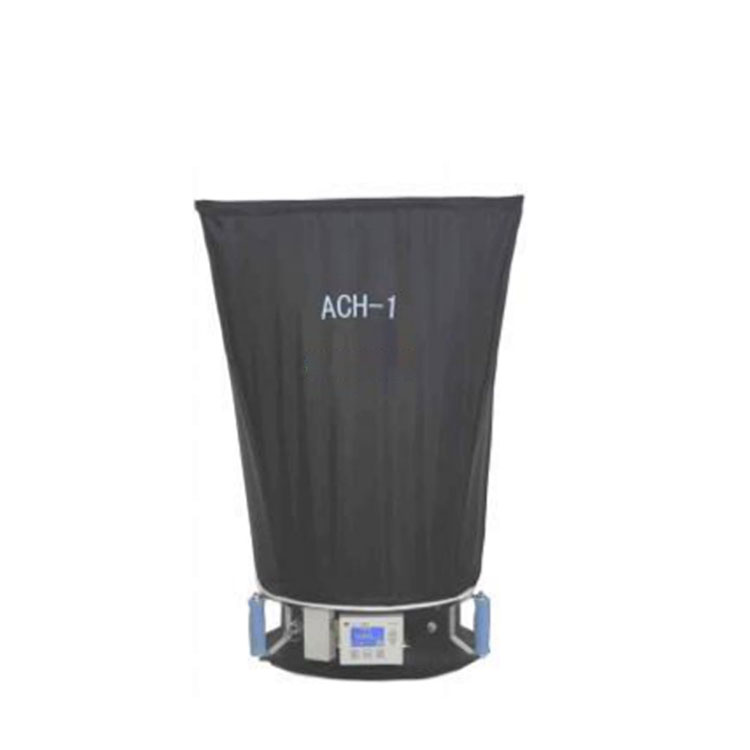

ACH-1 Air Flow Capture Hood

ACH-1 Air flow capture hood different sizes for its cover, random accessories, calibration certification and carrying case can be different according to the Air inlet size. The ACH-1 Accubalance Air Capture Hood reaches the same level of the similar products internationally on accuracy and performance.

Measurement range		150~3000m3/h
Accuracy		±3% of read
Resolution		1m3/hr
Spec	Standard size	610×610mm(24×24)
		760×760mm(30×30)
	Optional size	1220×610mm(48×24)
		305×610mm(12×24)
		305×1520mm(12×60)
		915×915 mm(36×36)
Weight		4.5kg (Air Capture Hood size: 610×610mm)
Battery		12 hours

It is widely used in mensurating the in-out wind of the cleanroom、air-conditioning and the purification technologie so that the systems can be administered and their parameters are adjusted automatically.
