Aerosol Diluter

Y09-AD310 Aerosol diluter is mainly used for the detection of filters. This diluter is used to connect the particle counter to measure the upstream of the filter to prevent contamination from the upstream concentration exceeding the saturation concentration of the particle counter. We provide gas detector OEM/ODM serves.

Model:Y09-AD310

Send Inquiry

Product Description
Parameter
Application
Video

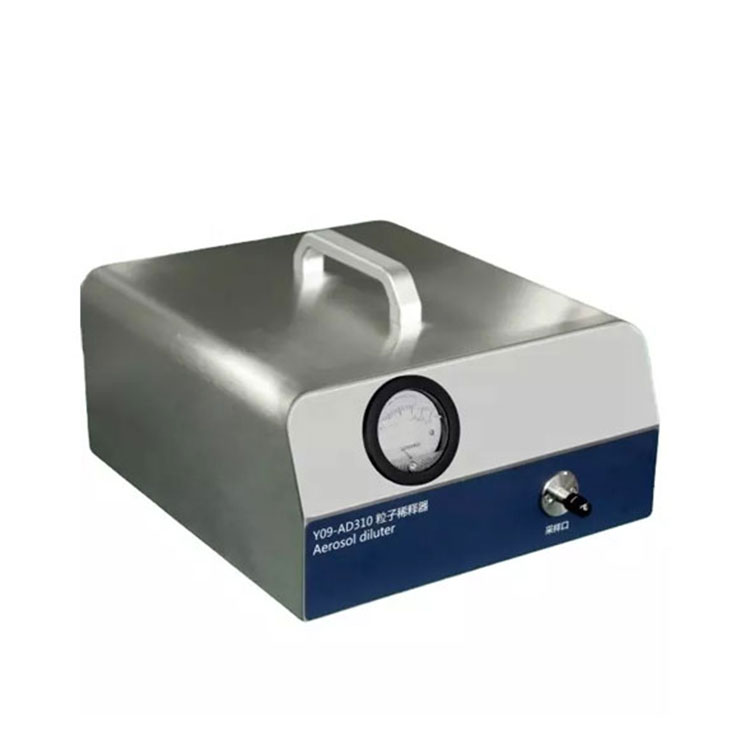

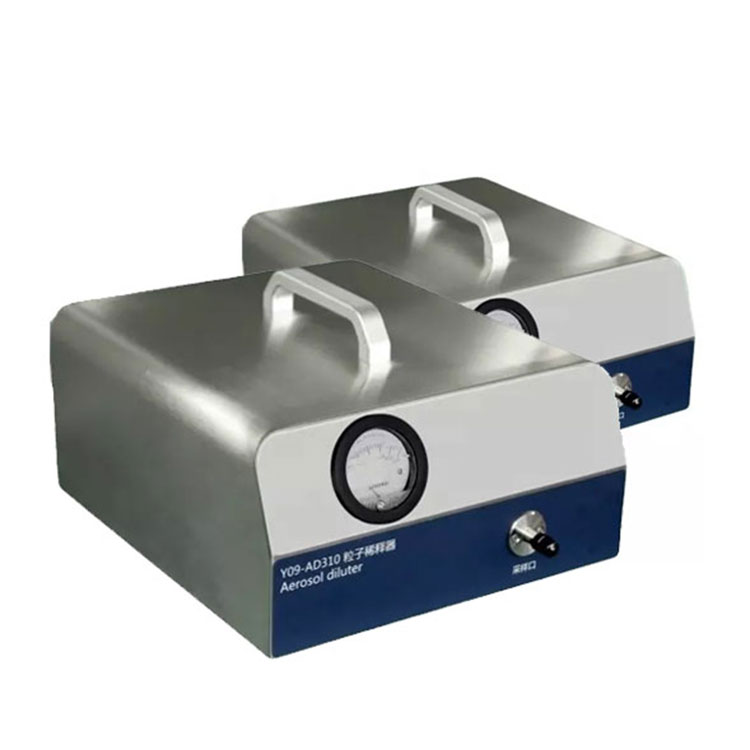

Y09-AD310 Aerosol diluter

Feature:

1. It operates between a 1 cubic foot / minute particle counter and an aerosol sampling tube.

2. The dilution ratio can be 10:1 or 100:1, and the diluted aerosol types include PAO, DOP, Ondina and so on.

3. The differential pressure monitoring system is mainly used to monitor the pressure drop at the inlet and outlet of the diluter.

4. The flow control and feedback system is used to monitor the work flow and feedback function of the diluter.

5. Professional team development and production, with patented technology, quality assurance

Sampling	28.3L/min (Deviation≤±5%)
Aerosol	PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Particle size range	0.1μm, 0.2μm, 0.3μm, 0.5μm
Dilution ratio	10times, 50times, 100times
Inlet and outlet diameter	11mm
Power	No need (to use a counter or photometer suction)
Repeatability	Standard Deviation≤10%
Size	333X303X151.5 (mm)
Weight	7KG
Material	SUS316L
Reference Standard	ISO 14644-1:2015; Y09 Serial laser dust particle counter enterprise standard; Q/320500GZY001-2016; GB/T 6167-2007 Test method for performance of dust particle counter; JJF-1190-2008Calibration specification for dust particle counter measurement;
