Aerosol Generator

The AG1800 Aerosol Generator produces aerosol particles in a wide range of diameters. We support OEM/ODM service.

Model:AG-1800

Send Inquiry

Product Description
Parameter
Application
Video

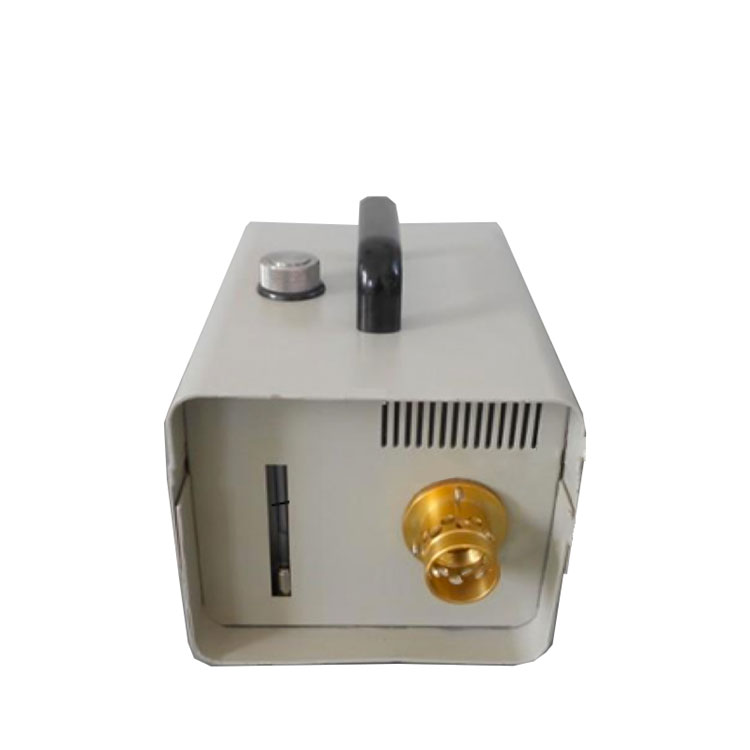

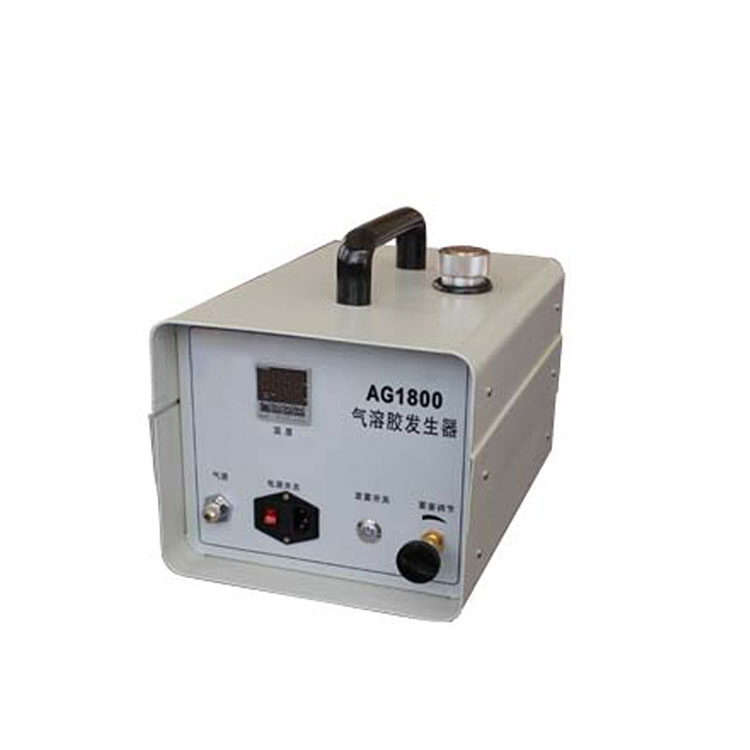

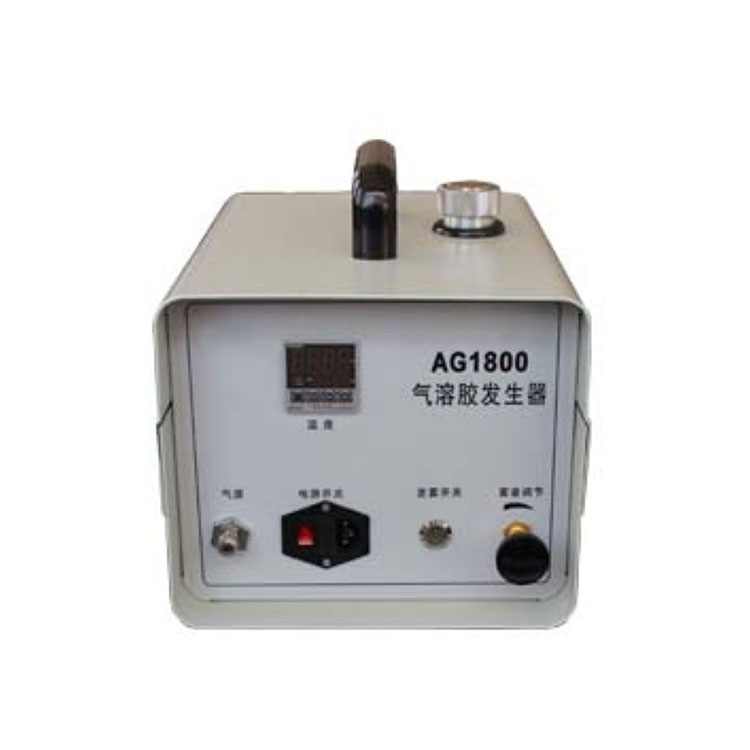

AG1800 Aerosol Generator

The AG1800 Aerosol Generator produces aerosol particles in a wide range of diameters, providing enough challenge particles to measure high efficiency filtration systems when used with a photometer (flow rates from 1.500 to 65,000 cfm). This is an enhanced aerosol generator that provides greater convenience for the user. Easy to operate, stable performance, suitable for certification, HEPA performance testing and installation. Need to use inert gas, suitable for AC220v±10%50HZ power supply.

Usable flow rate range	1,500-65,000cfm (42-1,839.5m3/min)
Occurrence concentration	Flow rate 65,000cfm (at approx. 1839.5m3/min)
Particle generation	PAO, DOP, polydispersed
Generation method	Heating generation
Compressed gas (inert)	Nitrogen, Argon, Carbon Dioxide or Helium (50psi))
Power supply	AC220～240VAC,50/60HZ
Dimension	280×390×300mm
Weight	Approx. 14kg

Leak detection of filters for the pharmaceutical industry (clean rooms, laminar flow tables, biosafety cabinets, glove boxes, HEPA vacuums, HVAC systems, HEPA filters, ULPA filters, negative pressure filtration units, operating rooms)
