Remote Airborne Particle Counter

China Zetron R310 Remote Airborne Particle Counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point. We provide gas detector OEM/ODM serves.

Model:R310

Send Inquiry

Product Description
Parameter
Application
Video

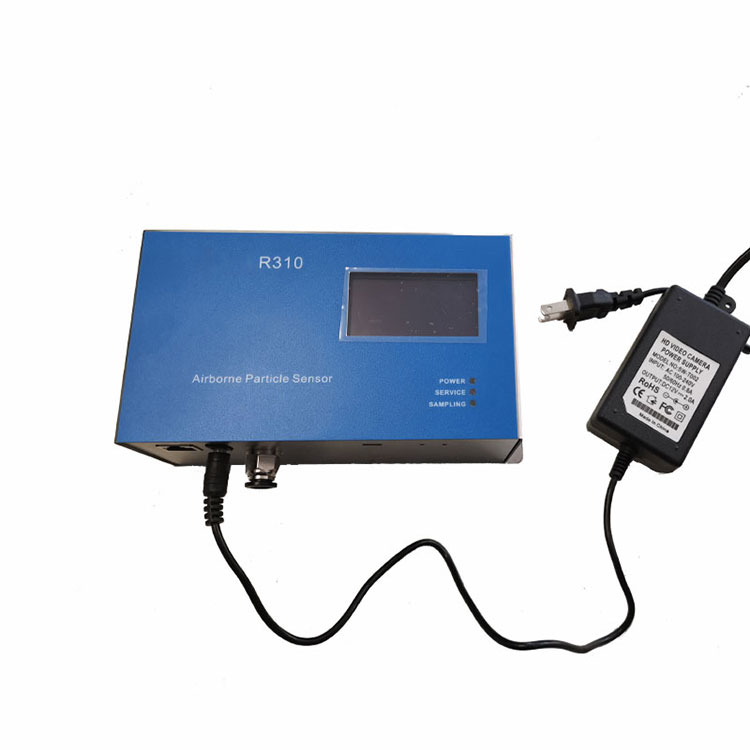

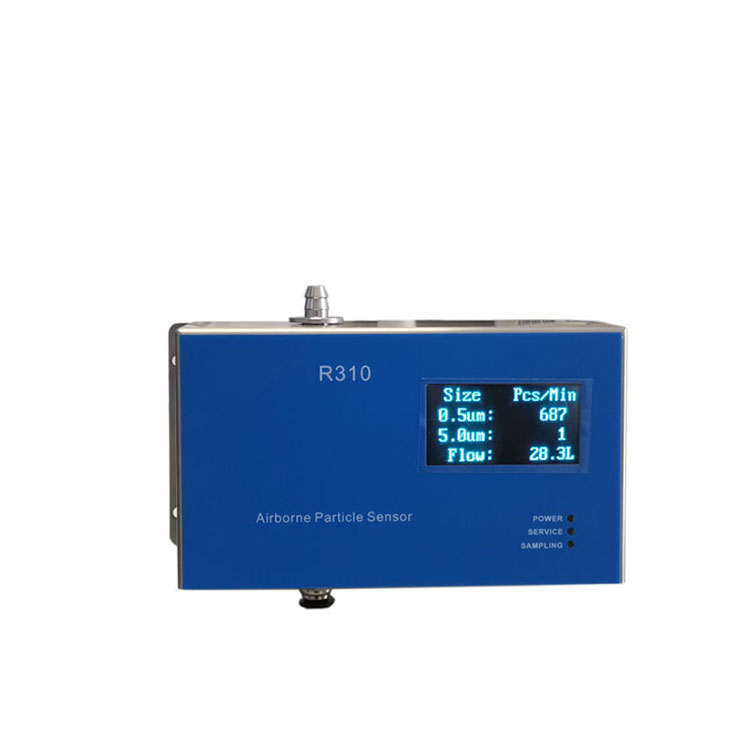

R310 Remote Airborne Particle Counter supplier

R310 Remote Airborne Particle Counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.

In addition, the R310 Remote Airborne Particle Counter contains multiple models, customers can choose the models according to their actual needs.

Product Feature

1.Particle size channels: 0.3um-25um (optional)

2.Sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) (optional)

3.Three indicators: power indicator, communication indicator, measurement status indicator

4.RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output options

5.Long-life service with imported laser diodes and vacuum pumps

6. Displayed intuitive and clear with 2.4 inch OLED

7. 316 stainless steel casing can be customized

Model	R200 (2.83L/min）	R210 (2.83L/min）	R310P
	R300 (28.3L/min）	R310 (28.3L/min）	(28.3L/min）
Channel sizes	Two Channels: 0.5μm、5.0μm
	Three Channels: 0.3μm、0.5μm、5.0μm
	Four Channels: 0.3μm、0.5μm、1.0μm、5.0μm
	Six Channels: 0.3μm、0.5μm、1.0μm、2.0μm、3.0μm、5.0μm
	(Customizable)
Display	X	Customizable	Display
		2.4 inch OLED	2.4 inch OLED
Output	RS485(modbus)	RS485(modbus) or TCPIP(modbus)
		（TCPIP has no extended output）
RS485(modbus)	X	4-20mA（2 channels）; 0-5V（2channels）
Extended Output		Relay（2channels）; WiFi; LORA
Power Supply	12-24V	12-24V（RS485（modbus)）
		12-24V、48V Standard POE（TCPIP（modbus)）
Pump	External pump	Built-in pump（R210）	Built-in pump
		External pump（R310）
Weight & Size	0.2-0.3Kg	0.9Kg	2.6-2.8Kg
	106.5×76×49（mm）	135×120×60（mm）	217×250×138（mm）

It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing

Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs
