Built-in Pump Online Particle Counter

The R series Built-in Pump Online Particle Counter can be installed with one or more monitoring points according to the actual site conditions, and the measured data will be displayed directly on the display of each monitoring point. The R series dust particle sensors can monitor particles of 0.3μm, 0.5um and 5.0um and meet the requirements of GMP, FDA and ISO21501-4, etc. Customers can choose the model that suits their needs.

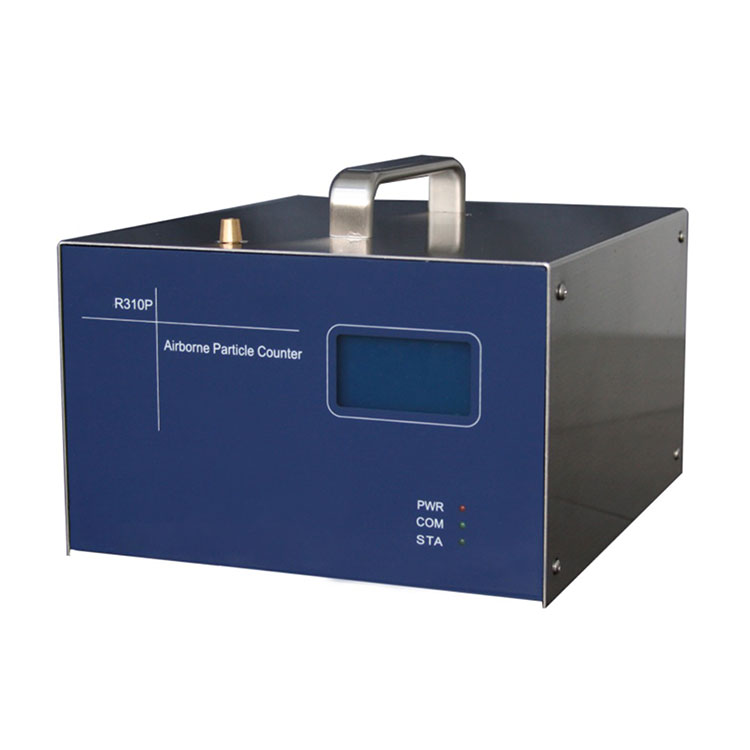

Model:R310P

Send Inquiry

Product Description
Parameter
Application
Video

China Built-in Pump Online Particle Counter Supplier

The R series of Built-in Pump Online Particle Counters offers flexibility in installation, allowing for the inclusion of one or several monitoring points tailored to specific site conditions. Each monitoring point features a display that directly showcases the measured data, ensuring convenient access to real-time particle counts. The R series dust particle sensors are capable of detecting particles of sizes 0.3μm, 0.5μm, and 5.0μm, thereby meeting the stringent standards set by GMP, FDA, and ISO21501-4. Customers have the option to select the model that best suits their unique requirements, ensuring precision and compliance across their operations.

Reasonable structure design, compact size, easy installation

Particle size channel: 0.3um-25um selectable

Sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) selectable

Three kinds status indicator: power indicator; communication indicator;measurement status indicator

Output type: RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output

Adopt foreign original laser diode and vacuum pump, long service life

2.4" OLED display, intuitive and clear reading

Can be customized 316 stainless steel case

Counting efficiency：	50%±20％ @ minimum channel size, 100% ±10％for particles >1.5 X - 2X channel particle size (meet standards ISO21501-4 and JIS)
Zero Count Degree：	<1 counting / 5 minutes（ISO 21501-4 and JIS）
Monitoring Range：	Class 100 - 300,000
Housing Material：	304 Stainless Steel
Standards：	JIS B9921；ISO21501-4
Temperature：	10-40℃，20%-95% RH

Item：	R200 (2.83L/min)	R210 (2.83L/min) R310 (28.3L/min)	R310P (28.3L/min)
Particle channel：	00：customized 02: 2 channels: 0.5μm、5.0μm 03：3 channels: 0.3μm、0.5μm、5.0μm 04：4 channels: 0.3μm、0.5μm、1.0μm、5.0μm 06：6 channels: 0.3μm、0.5μm、1.0μm、2.0μm、3.0μm、5.0μm
Display：	N：without display	N：without display D：2.4 inch OLED display	D：2.4 inch OLED display
Communication：	R：RS485(modbus)	R：RS485(modbus T：TCPIP(modbus)
RS485(modbus) signal output ：	without	I： 4-20mA current output（2 channels） V： 0-5V voltage output（2 channels） E： relay output（2 channels） W：WiFi L：LORA
Power supply：	12-24V	12-24V（RS485（modbus）12-24V、48V POE（TCPIP（modbus)）
Pumped type：	External pump	internal pump（R210） external pump（R310）	internal pump
Weight and Size：	0.2-0.3Kg 106.5×76×49（mm）	0.9Kg 135×120×60（mm）	2.6-2.8Kg 217×250×138（mm）
