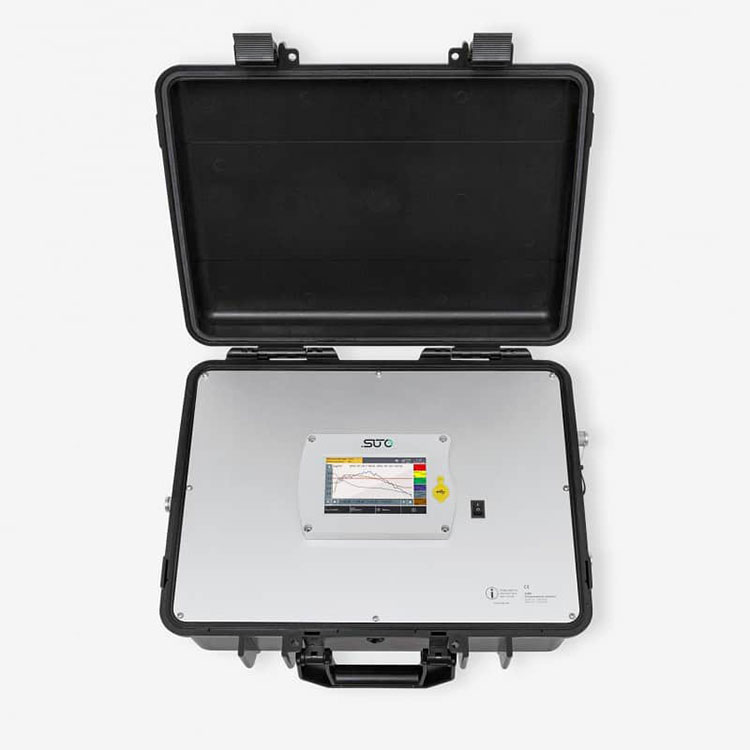

Portable Compressed Air Purity Analyzer

• Particle measurement from 0.1 < d ≤ 0.5 µm, 0.5 < d ≤ 1.0 µm, 1.0 < d ≤ 5.0 µm is possible, thanks to the latest laser detection technology. The measurement methods meet the requirements of the ISO 8573-4 standards (together with the isokinetic sampling device). Counting efficiency according to ISO 21501-4 30…70% of d> 0.1 µm, 90… 110% od d>= 0.3µm.
• Oil vapor measurement from 0,001 bis 5,000 mg/m³ is provided by state-of-the-art photoionization detector (PID) with self-calibration. The measuring range is measured according to ISO 8573-1 Class 1 to Class 5, with high precision (5 % of reading ± 0.003 mg/m3 accuracy).
• Pressure Measurement with the latest sensor technology, providing important additional quality data about the compressed air system.

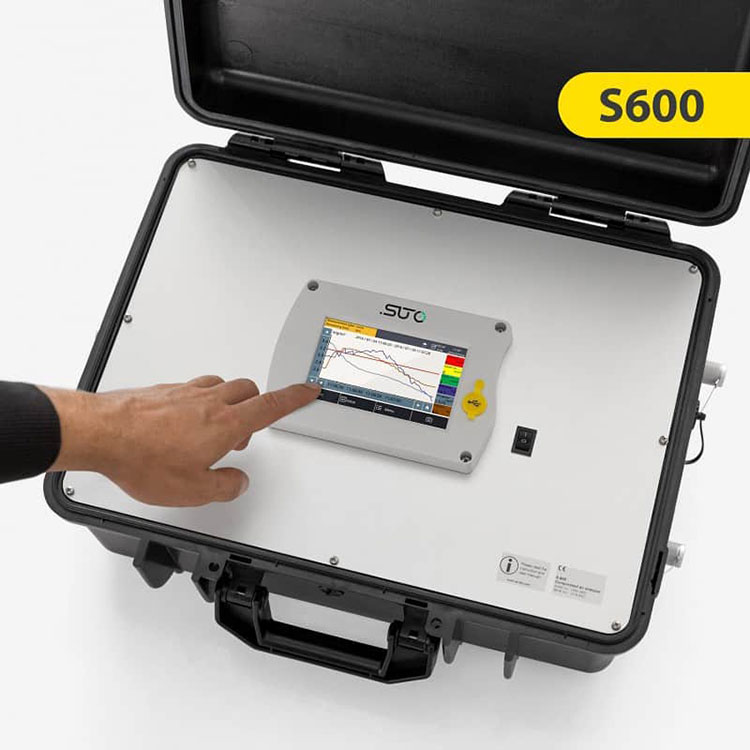

• The Integrated data logger records all channels in parallel for later analysis. The 5’’ touchscreen allows you to interact with the device on site. There is no need for a PC to manage the device.

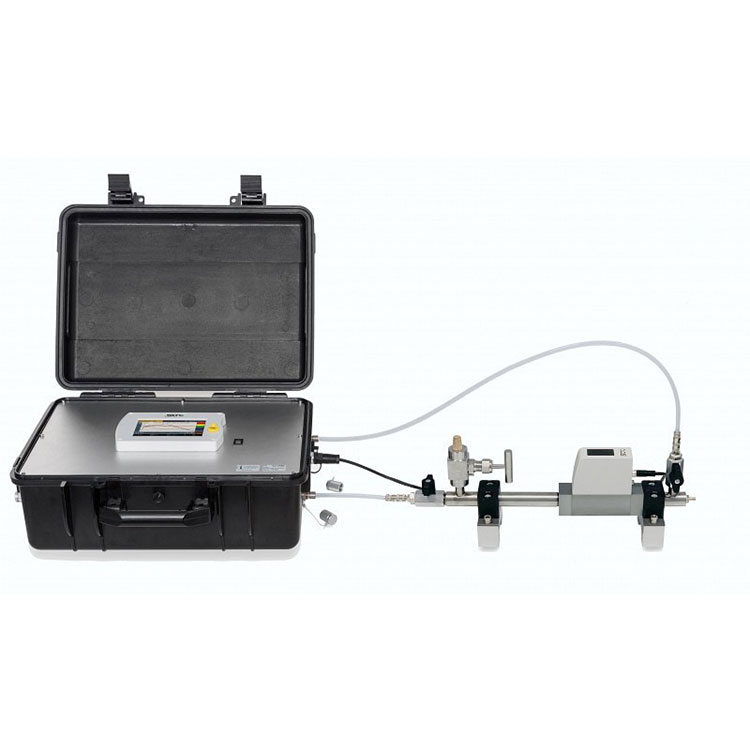

ISO 8573-4 Isokinetic Sampling Device

For particle measurements according to ISO 8573 an isokinetic sampling tube has been designed. This optional equipment enables you to monitor and adjust the air flow of the particle measurement to ensure the correct isokinetic sampling.

Create Powerful Reports for Compressed Air Audits

The S600 Portable Compressed Air Purity Analyzer enables users to create powerful PDF reports directly on site. The reports are following the recommendations stated in the ISO 8573. Customer related data as well as service provider details can be entered on-screen, making it even easier to perform audits and to create meaningful reports. PDF reports can be created from any recordings on the device and are copied on the fly to a connected USB drive for direct print-outs.

Optional 4G/LTE Remote Connection

With the integration of a USB port for 4G dongle connection outside the S600 casing, portable devices can seamlessly connect to the S4A Software and be monitored remotely, eliminating the necessity for a WiFi connection. The USB 4G dongle serves as an optional feature that can be ordered along with the S600 or upgraded later. To utilize this innovative feature, a SIM card is required, ensuring effortless access to remote monitoring capabilities without the constraints of traditional connectivity methods.
