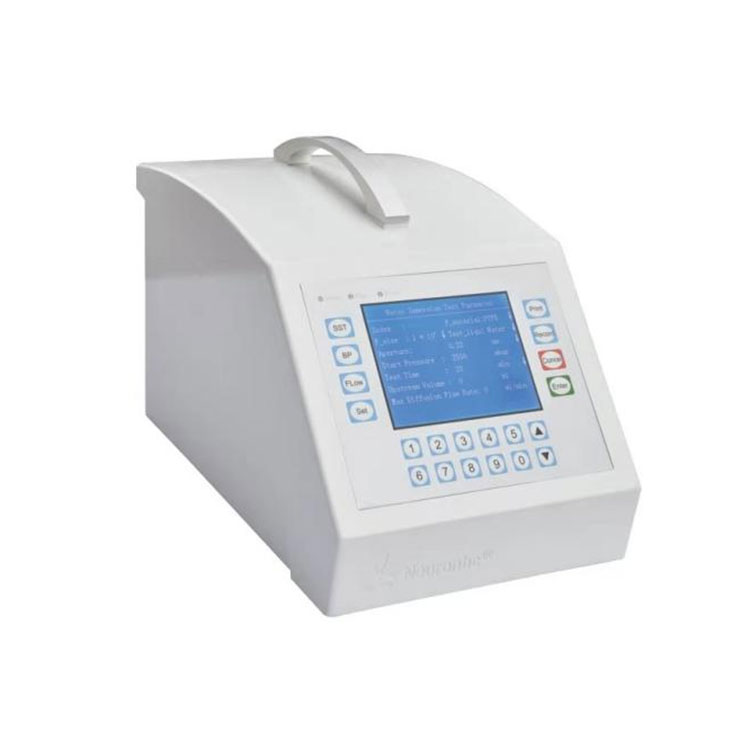

Filter Integrity Tester

Filter Integrity Tester made in China

Introduction：

Filter Integrity Tester are designed for testing integrity of filters and filter systems . The State Pharmacopoeia and GMP specification requirements. The V4.0 Integrity Tester is compact, handy to use, and fully automated integrity test instrument, which performs bubble point, diffusion flow, enhanced bubble point, and water-based test for hydrophobic filters. The first domestic launch of integrity test for water-based test for hydrophobic filters to meet different customer needs.

Main features ：

1.The scientific electronic signature and classification to distinguish the responsibility easily, and to prevent false operation.

2.Display of test data and curves in real time, monitoring the whole process of testing.

3.Provides automatic printing set function, the user can operate more simple and convenient.

4.Water Based test (WH) for Hydrophobic Filter: using purified water as test liquid instead of IPA and Ethanol, thus it can avoid trace quantity of ethanol or IPA contamination when testing filters.

5.The instrument can store 500 history record and curve.

Applied range：

Disc Membrane:Φ25mm-Φ300mm;

Standard Cartridge:2.5 ″- 40 ″

Capsule & Mini Catridge

Air filter test :2 .5 ″- 40
