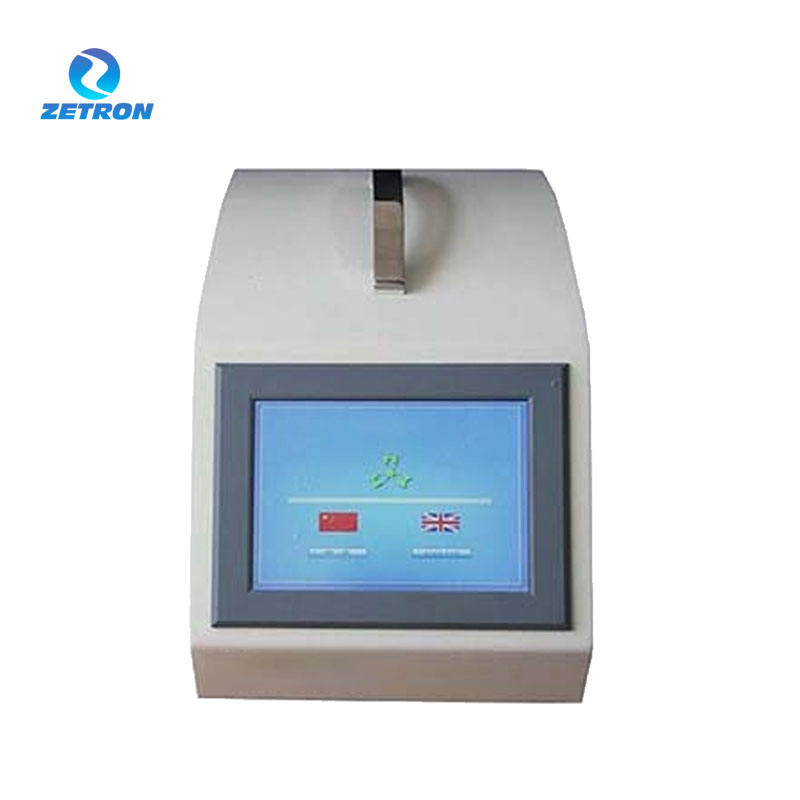

Filter Integrity Tester with Audit Trail

Zetron is a China manufacturer that has been specializing in the production of Filter Integrity Tester with Audit Trail for many years. With its excellent team, complete infrastructure and good service attitude, it has attracted much attention in the industry.

Model:V4.0

Send Inquiry

Product Description
Application
Video

Filter Integrity Tester with Audit Trail Supplier

Features:

● Powerful functions, covering all the existing test methods for the filter integrity testing; u The first domestic implementation of integrity testing for the ultrafiltration system;

● Scientific authority management design, password, permissions, authority grading, electronic signature, etc., in full compliance with FDA 21 CFR PART 11 requirements;

● It can create120 groups of reservation solution, so the instrument is more simplistic and intelligent;

● With rich data interface, the instrument not only includes the standard configuration of digital and analog interface (RS232/ USB), but also can customize a variety of industrial bus and simulation control port according to customer's need, in preparation for the intelligent system upgrade, such as the complete set of online automatic sterilization control system;

● Independent research and development team can carry out the design of specific solutions according to the needs of customers; Many years of field experience and strong professional services can not only ensure that the customers use the instrument at ease, but also can provide the technical support for the design and configuration of the filter system of the customers;

Power Supply	100 – 260VAC, 50HZ, 120W
Operation Pressure	100- 10000 mbar (1.5- 145psi) ;
Unit	mbar
Operation Condition	Ambient Temperature：+5℃ ~ +40℃; Relative Humidity：10-80%
Dimension（ mm）	400（Depth）240（Width）270（Height1）*220(Height2)
Function	Manual Bubble point Test ；Basic Bubble Point Test ；Extensive Bubble Point Test；Pressure Holding Test；Diffusion FLow Test；Water Intrusion Test；Ultrafitration Membrane Test
Test Accuracy	Upstream Volume Test： ≤：4%；Bubble Point Test： ≤：50mbar ；Diffusion Flow Test： ≤：4% ；Water Immersion： ≤：0.01ml
Test Scope	BP：100-8000mbar DF：1-600ml/min WI：0.01-100ml/min
Applied Range	Symmetric and asymmetric membrane test, needle filter, filter bag, flat filter, filter cartridge (big filter volume ), ultrafiltration membrane, ultrafiltration column, a variety of irregular filters
Authority Management	User Name and Password to Login ,electronic signature to meeting the FDA 21CFR PART11requirements
Reservation Solution	120 sets
Audit trail	3 years
Print Function	Built-in printer；
Historical Records	More than 15000 sets unlimited sets records
Records Copy	Support USB disk to export （Include test curve）
Display Screen	7 inch,color touch screen
Serial Connection	RS232/USB
Language	Chinese/English
Work Mode	Online/Offline
Other functions	One/two-dimension cods ,Scanning gun;Lithium battery（customization)
Applicable Environment	Above Dlevel
Weight	8KG
