Exhaust Gas Analyzer

China Zetron PTM600-FG Exhaust Gas Analyzer is a device specially used to measure and analyze the concentration of various components in exhaust gas. It can detect and analyze harmful substances in emission gases in real time and accurately, such as carbon monoxide (CO), nitrogen oxides (NOx), hydrocarbons (HC), etc. This kind of equipment has wide applications in environmental protection, automobile manufacturing, petrochemical industry and other fields.

Model:PTM600-FG

Send Inquiry

Product Description
Parameter
Application
Video

China Exhaust Gas Analyzer Supplier

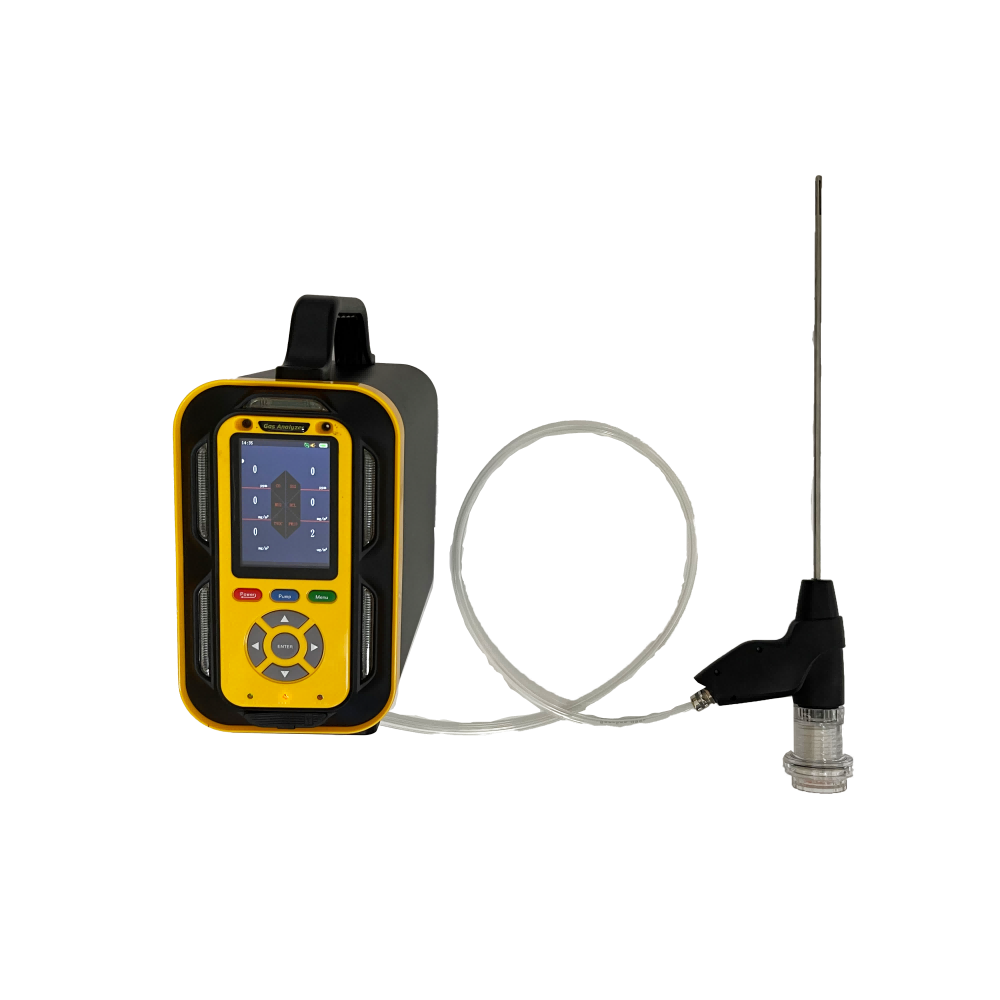

PTM600-FG Exhaust Gas Analyzer is a all-in-one and transportable flue gas analyzer. Built-in the pump, filter and electric cooler, all pretreatment parts are equipped for measurement. Up to 18 gas emission mearurements, with different high temperature and length probe, it is suitable for various industrial sites.

PTM600-FG Exhaust Gas Analyzer – Professional measurement system for portable, industrial emission measurement which is the ideal tool for professional flue gas analysis.

Exhaust Gas Analyzer Features

● Fast and efficient multi gases, temperature and humidity detection function.

● Provided with high measurement precision, stable performance.

● Simple operation and convenient to carry.

● Suitable for indoor environment of family, office, inside of cars and natural environment, etc.

● Rich human-machine interface and powerful andonvinent humanized function.

● Large data storage & multi-storage.

● Multiple optional function meet peasonlized needs.

Gases to be detected	Arbitrary combination of 1~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide,inflammable and explosive gases, TVOC, and so on.
Detection range	Electrochemical sensor for O2: 0-25%VOL, 0.01% resolution
	Electrochemical sensor for SO2: 0-5000ppm, 1ppm resolution
	IR sensor for CO2:0-50%VOL,0.01% resolution
	Electrochemical sensor for CO: 0-10000ppm, 1ppm resolution
	Electrochemical sensor for NO: 0-4000ppm or 0-10000ppm, 1ppm resolution
	Electrochemical sensor for 0-500ppm/0-1000ppm, 0.1ppm resolution
	Electrochemical sensor for H2S: 0-1000ppm, 1ppm resolution
	IR sensor for CxHy: 0-40000ppm, 1ppm resolution
Tolerrance	≤±2% F.S (other or higher precision levels can be customized)
Working environment Sample gas temperature	Temperature: -40 ℃~+70℃
	Humidity:≤10~95% RH
	-40℃~+70℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300℃.
Power supply	3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode	3.5-inch high-definition color screen
Detection mode	Built-in pump-suction type measurementFlow rate at 800 ml/min
Alarm mode	Sound & light alarm, vibration alarm, turning off the alarm.
Protection level	IP66
Explosion-proof type	Intrinsically safe type
Explosion-proof mark	Exia II CT6
Exterior dimensions	230x210x120mm(LxHxW)
Weight	2.5Kg

PTM600-FG is used for a vast array of applications. The most common applications are those related to combustion and emission sources such as boilers, burners, engines, turbines, generators, kilns, dryers, heaters, ovens, just to name a few. Enerac combustion analyzers are perfect for both increasing one’s efficiency as well as for gathering extremely accurate and reliable data for internal needs as well as for the necessary emissions reporting requirements found with the local, district, county, state and federal regulatory agencies.
