Portable Flue Gas Analyzer

The China Zetron Portable Flue Gas Analyzer is a compact device used for on-site measurement and analysis of flue gases emitted from combustion processes, typically in industrial settings or for environmental monitoring. These analyzers are designed to be easily transported and operated in various locations. Additionally, we offer OEM/ODM services.

Model:MS600-FG2

Send Inquiry

Product Description
Parameter
Application
Video

MS600-FG2 Portable Flue Gas Analyzer Supplier

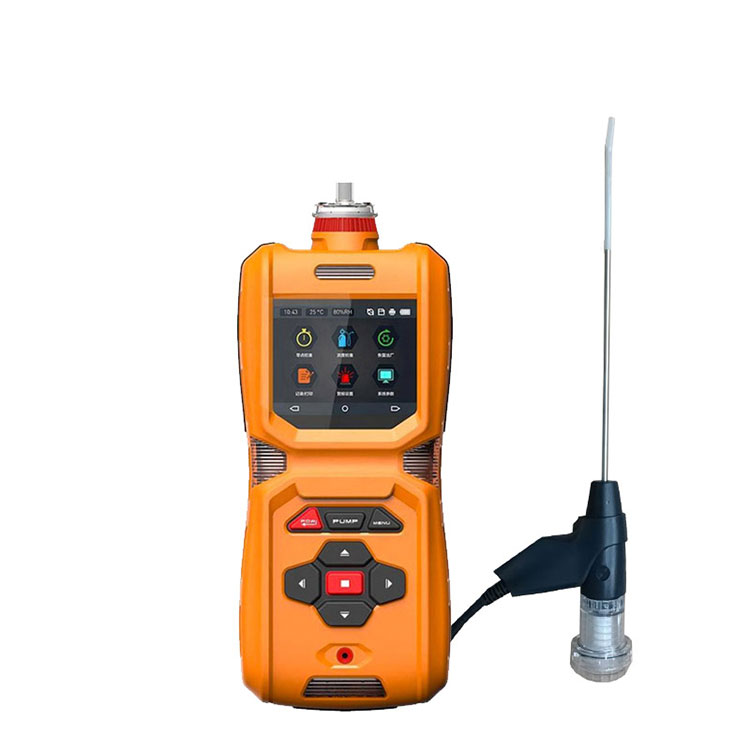

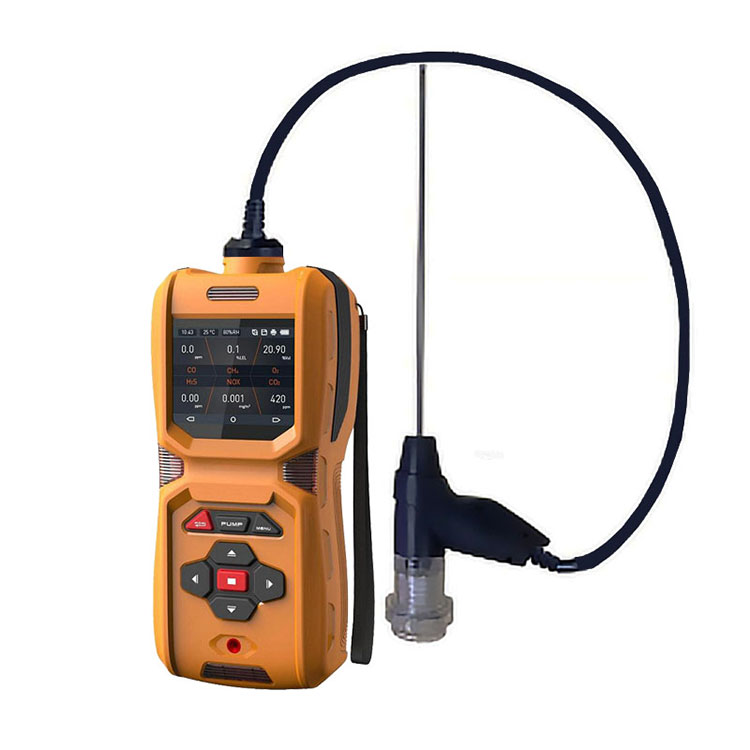

MS600-FG2 Portable flue gas analyzer have kink-resistant hose is integrated into the housing to eliminate leaks. The stainless steel probe and cone-stop is perfect for residential furnace, boiler and water heater applications. With six different fuels to select from, it provides the flexibility you need for your tuning opportunities.

It is possible to simultaneously detect 1 ~ 6 types of gases, and the units can be switched freely. The types for detection are more than 500 types.

Gases to be detected	Arbitrary combination of 1 ~ 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.Optional configuration: temperature and humidity measurements.
Application scenarios	All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%LEL 0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on. Depending on the type of gas, range, field environment and user demand.
Sensor service life	Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; Infrared principle: 5 ~ 10 years; Catalytic combustion: 3 years; Thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error	≤±1% F.S (other precision levels can be customized)
Linearity	≤±1%	Repeatability	≤±1%	Uncertainty	≤±1%
Response time	T90≤20 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature	-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement	Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply	3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode	2.5-inch high-definition color screen
Detection mode	Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode	It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface	USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage	Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level	IP67
Explosion-proof type	Intrinsically safe type
Explosion-proof mark	Exia II CT6
Exterior dimensions	180×78×33mm (L×W×H)
Weight	350g
Standard accessories	Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter

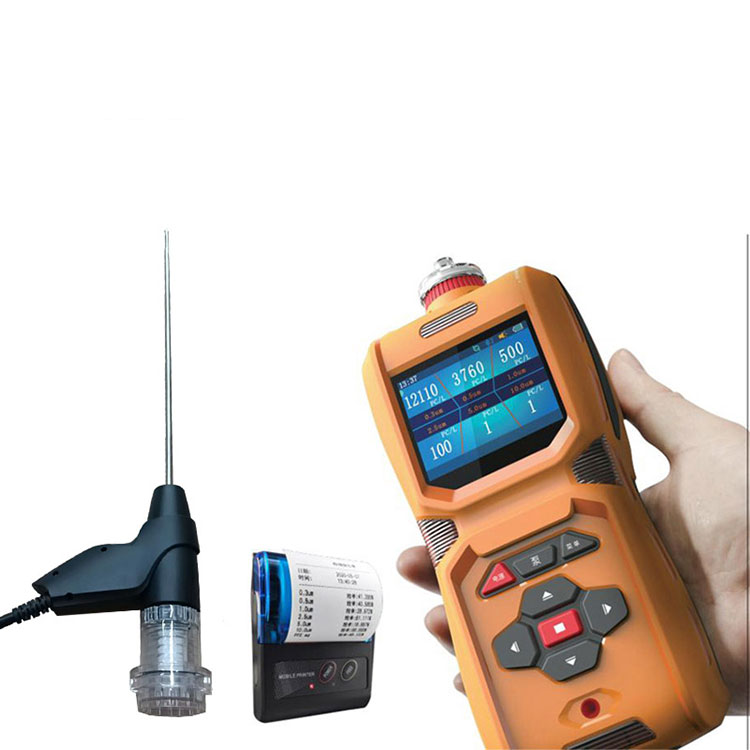

Optional items	1）Temperature and humidity measurement function 2）1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1meter) 3) 0.4 meter stainless steel sampling handle (with dust filter, not retractable), 4) high temperature sampling and cooling filter handle 5) high temperature humidity pretreatment system 6) multiple humidity dust filter 7) hanging rope, CD-ROM (upper level computer communication software) 8) SD card storage, wireless data communications, external mini wireless infrared printer

The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarm, to ensure that the safety of staff life is not threatened, production equipment is not lost.
