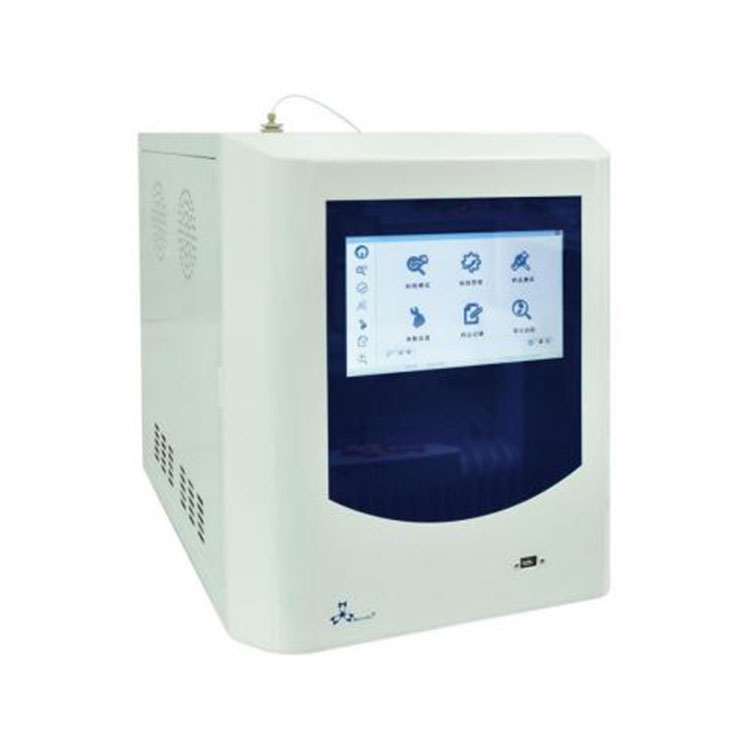

Total Organic Carbon Analyzers

Its working principle is to add a certain amount of sample to the air, oxidize the organic compounds in the sample into carbon dioxide and water at high temperature, and then measure the concentration of carbon dioxide through a specific detection method to determine the total organic carbon content in the sample. It can be used to monitor and analyze the content of organic pollutants in various water bodies (such as tap water, wastewater, groundwater, river water, lake water, etc.) and solutions, as well as analyze the content of organic matter in pharmaceuticals, chemical products and food. In the pharmaceutical field, total organic carbon analyzers are also used for water quality monitoring in water for injection and pharmaceutical processes.

Total Organic Carbon Analyzers

Main feature:

1. Low current system design also ensures operation safety.

2. Different temperature setting for various samples ensures complete sample digestion so as to get more accurate measuring data.

3. Adjust cooling module power according to sampling volume which improves drying performance to ensure dry gas into the detector.

4. Automatic leak check system to avoid operation mistakes and improve instrument performance, so as to ensure operation safety and instrument’s safety

5. Flow rate controlling system to avoid any effect caused by flow rate fluctuation which ensures accurate data

6.  TOC detector with 24 bits data solution extends monitoring range. Controlling system with 32bin processing technology greatly improves performance

Mode	TA-200 offline
Detector	NDIR
Parameters	TC,TIC,TOC, NPOC
Digestion Mode	High Temperature Combustion
Application	Liquid Sample
Gas Requirement	Oxygen, Nitrogen ≥ 99.995%
Measurement Range	0-30000mg/l（can exanded)
Detection Limit	50μg/l
Repeatability	3%
Maximum Salinity	85g/l
Power	100 - 240 VAC
Size(mm)	430*455*440
