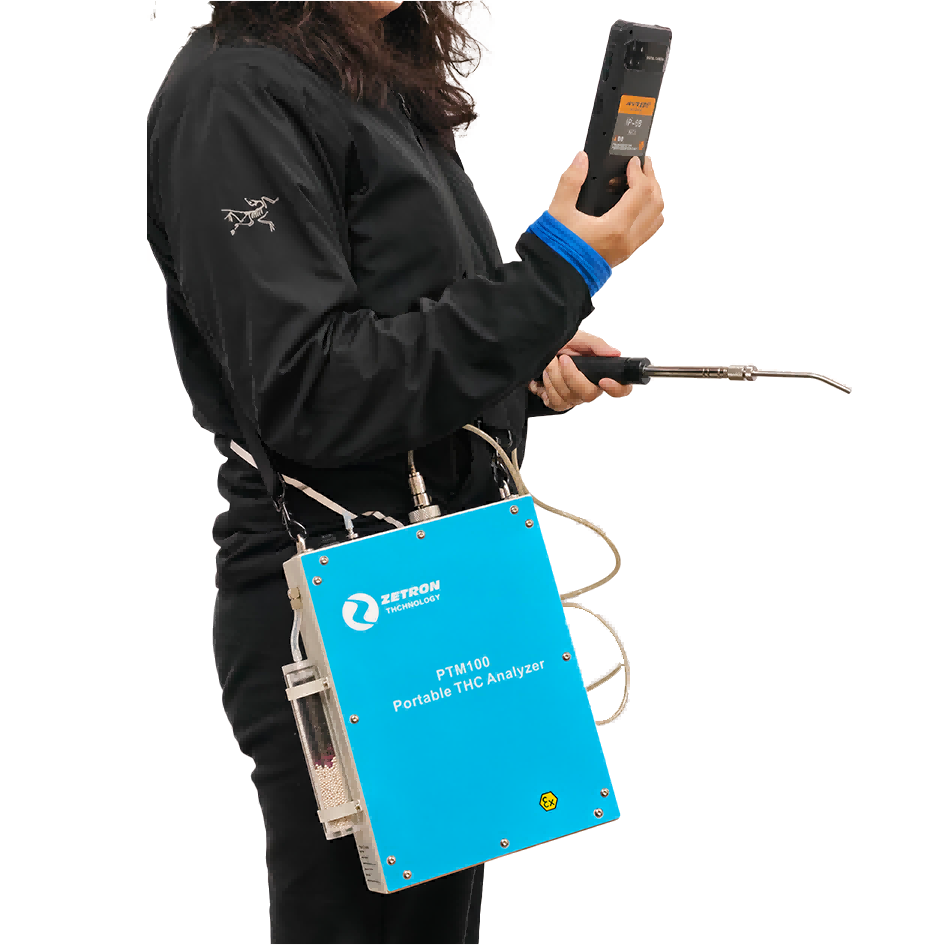

PTM100 Volatile Organic Gas Analyzer

PTM100 volatile organic gas analyzer is equipped with flame ionization (FID) and photoionization (PID) detectors that can work simultaneously and adopts explosion-proof design. It is used for LDAR detection, leakage detection of closed points in oil and gas collection and recovery systems , detection of VOCs on leaking and open liquid surfaces, rapid screening of soil pollutants and comprehensive regional surveys.

Send Inquiry

Applicable standards:

GB 37822-2019 "Control Standard for Fugitive Emissions of Volatile Organic Compounds";

HJ 733-2014 Technical Guidelines for the Detection of Volatile Organic Compounds from Leaks and Open Surface Emissions;

HJ 1019-2019 Technical Guidelines for Sampling Volatile Organic Compounds in Soil and Groundwater;

EPA Method 21 "Determination of Volatile Organic Compounds";

Leakage concentration detection at closed points of oil and gas collection systems in GB 20950-2020 "Emission Standards of Air Pollutants from Oil Storage Depots" ;

GB 20951-2020 "Emission Standards of Air Pollutants for Oil Transportation" for oil and gas sealing point leakage detection of transportation vehicles;

Leakage detection of oil and gas sealing points of transportation vehicles in GB20952-2020 "Emission Standards of Air Pollutants from Gas Stations".

Key Features:

1. Support hydrogen flame ionization (standard configuration) and photoionization dual detectors;

2. Digital display of hydrogen pressure and intelligent reminder of remaining working time;

3. Intelligent reminder of battery power and remaining time;

4. FID automatic ignition, flame temperature real-time monitoring;

5. Built-in database of more than 200 volatile organic gases;

6. Host explosion-proof mark: Ex db ia IIC T4 Gb;

7. The explosion-proof hand operator uses a 6.5-inch touch screen and supports Bluetooth and WIFI;

8. Explosion-proof mark of handheld operator: Ex ib IIC T4 Gb/ Ex ibD 21 T130℃.

Technical parameters:

Main parameters	Parameter range
Measuring range	FID: 0～100,000ppm
Measuring range	PID: 0～2,000ppm, multiple ranges available; [Optional configuration]
Method detection limit	FID: 0.5 ppm methane
Method detection limit	PID: 0.5 ppm isobutylene
Accuracy	±5% of reading or±1 ppm, whichever is greater
Accuracy	±5% of reading or±1 ppm, whichever is greater
Repeatability	FID: 2% at 500 ppm methane
Repeatability	PID: 1% at 100 ppm isobutylene
Responding to an event (T90)	FID:≤3.5 s (10000ppm methane)
Responding to an event (T90)	PID:≤3.5 s (500ppm isobutylene)
Sampling flow	800 ml/min (adjustable)
Battery life	≥10hours (0℃)
Hydrogen endurance	≥15hours
Power adapter	DC8.4 V 1A
Work Environment	-30~45°C, 10%~95% RH
Gas interface	1/4 inch
Host weight	3.5 KG

Packing List

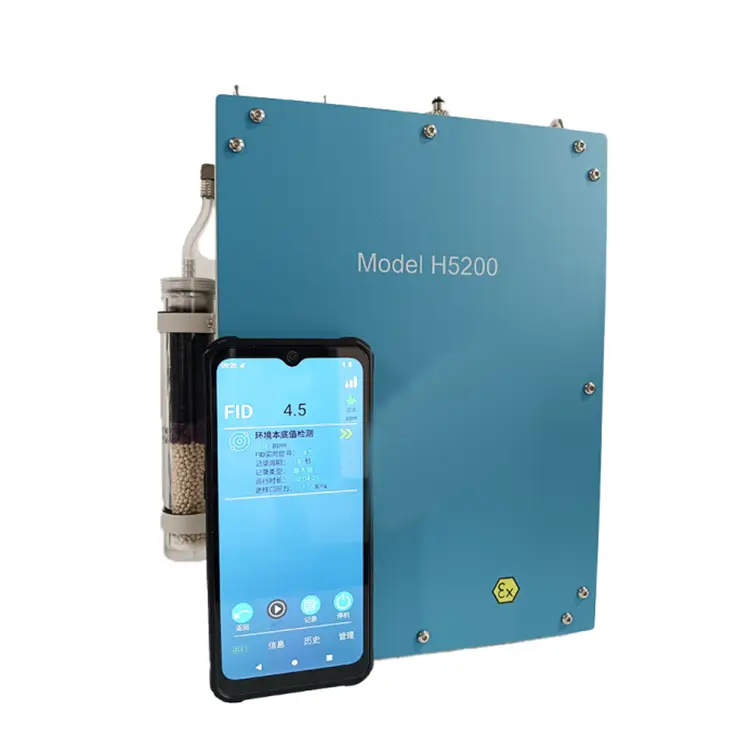

Huayi H5200 Volatile Organic Gas Analyzer Instrument No.:

Serial number	name	Specification	unit	quantity	Factory inspection	Remarks
1	H5200 Host	Standard Configuration	tower	1	〇
2	Shoulder Straps	/	indivual	1	〇
3	Explosion-proof handheld operator	/	tower	1	〇
4	Protective box		indivual	1	〇
5	Power adapter	AC8.4V ,1.2A	indivual	1	〇
6	Inlet filter	Φ25mm，1μm	indivual	20	〇
7	Inlet filter	Φ17*2, 50um	indivual	2	〇
8	Sampling probe assembly	/	set	1	〇
9	Hexagon wrench	2mm	indivual	1	〇	Drain cover disassembly and assembly
10	5200 tooling	/	indivual	1	〇
11	Drain portseal	Φ18.5 *1.8	indivual	2	〇
12	Inletseal	Φ22*2.5	indivual	2	〇
13	Filtertrap	/	indivual	1	〇
14	Calibration components	/	set	1	〇
15	Hydrogen filling components	/	set	1	〇
16	User Manual	Electronic version	share	1	〇
17	Product Certificate	/	share	1	〇
