Portable Airborne Particle Counter

With fast, reliable sampling of one cubic meter of air in only ten minutes, the B Series Portable Airborne Particle Counters offer fast cleanroom qualification and at sensitivities of 0.3 microns. We provide gas detector OEM/ODM serves.

Model:B550

Send Inquiry

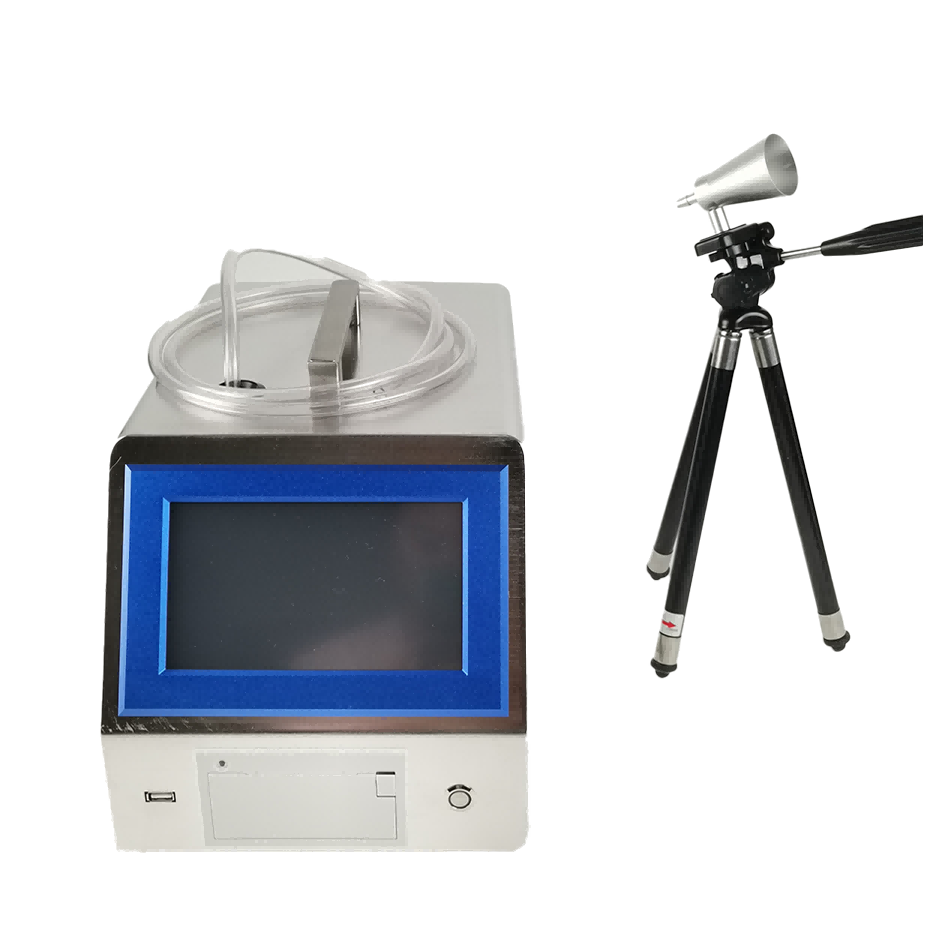

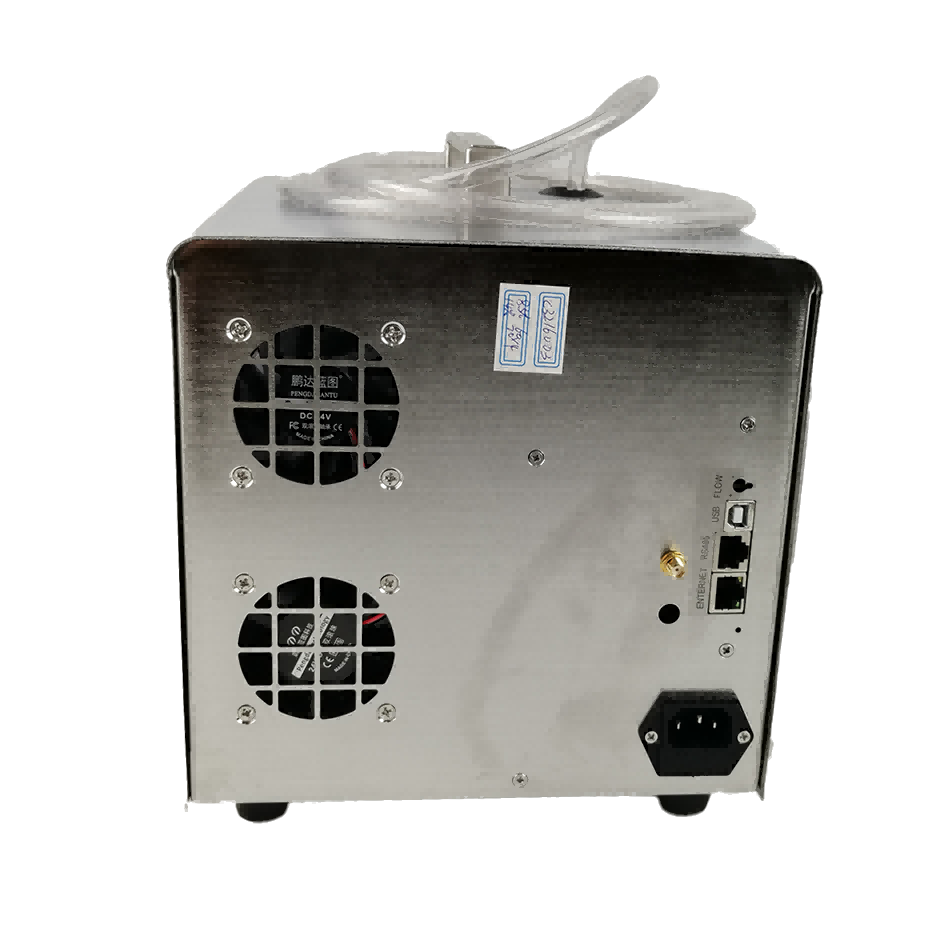

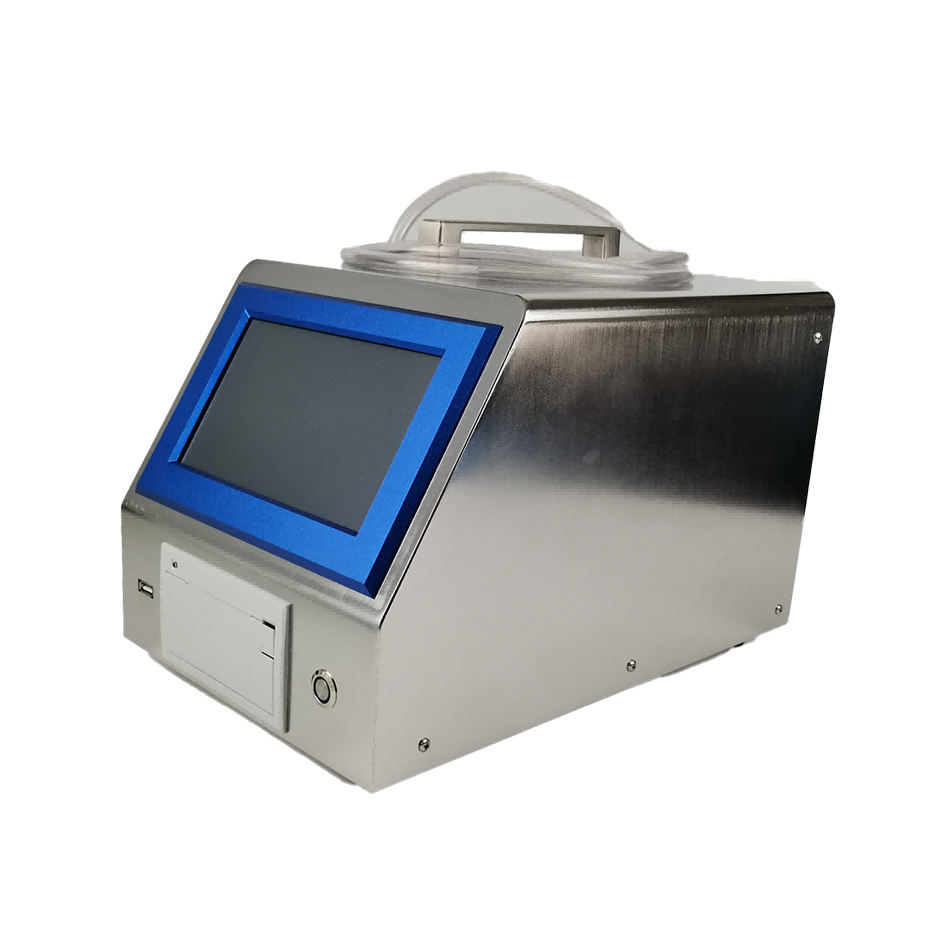

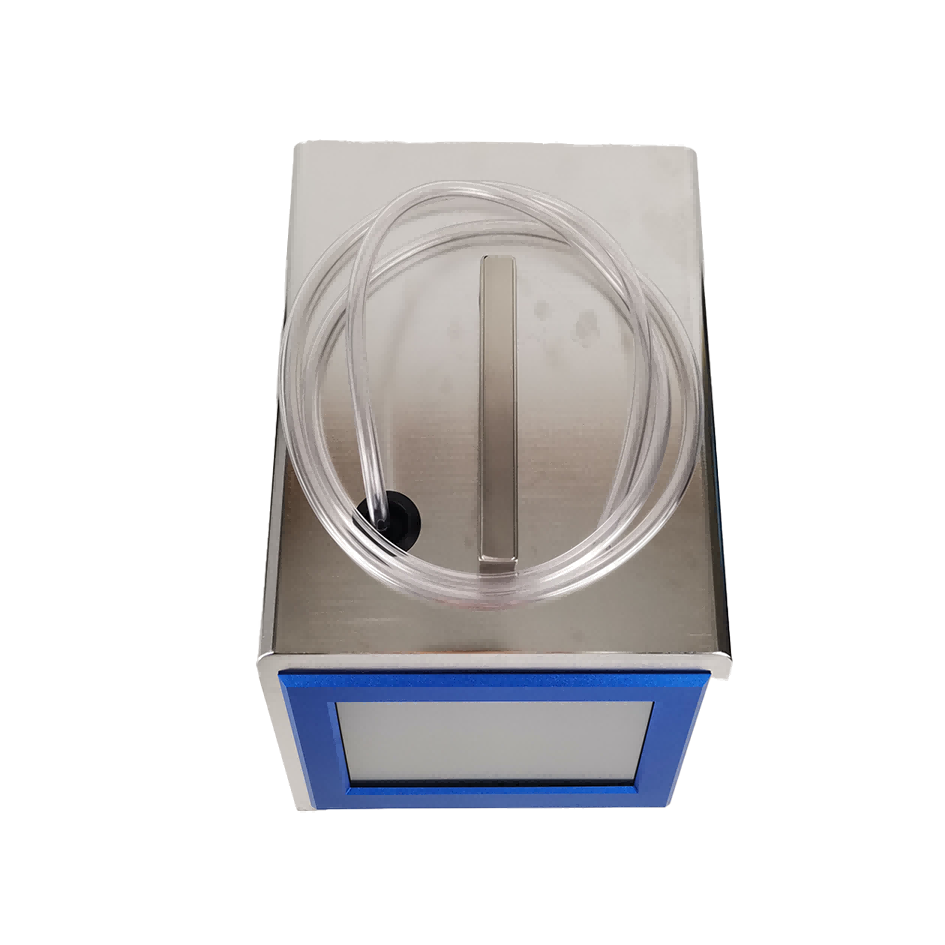

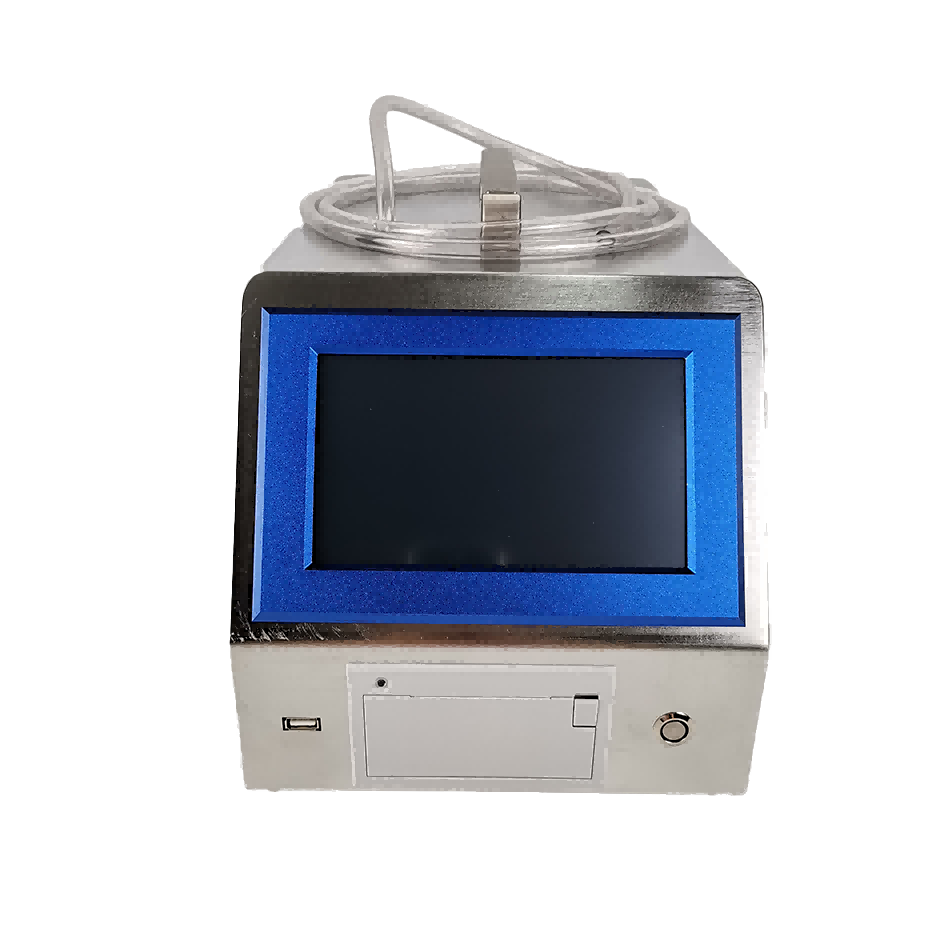

B550 Portable Airborne Particle Counter

With fast, reliable sampling of one cubic meter of air in only ten minutes, the B Series Portable Airborne Particle Counters offer fast cleanroom qualification and at sensitivities of 0.3 microns.

B Series incorporate our Extreme Life Laser Diode Technology sensor to produce the industry’s long life-time laser diode.

The B550 is the industry’s 50 LPM 0.3 micron portable designed for continuous use.B Series are adopted the industry’s UI (User Interface) to configure andoperate the instrument. The intuitive ICON-driven screens and menus are easy to learn and use, and support multiple languages.

They can store up to 5,000 records of particle count data from up to 8 particle channels and the configurable recipe database can store up to 50 recipes for sampling and reports. All data can be quickly and reliably transferred to a computer.

Model	B1030	B550	B330
Size Range	0.3 - 10.0µm
Channel Sizes	8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm
Flow Rate	100L/min	50L/min	28.3L/min
Concentration Limits	35,000 particles/L
Light Source	Laser diode (30,000 hours mean time between failure)
Dimensions(mm)	223348250	220285260	220285260
Weight(Kg)	7.1	9	8.5
Sample Period	1 Sec~5999 Sec(5L-5000L)
Calibration Count Modes	Meets ISO14644 calibration ,GMP-2010
Date Storage	2000 samples
Communication Modes	WIFI, RS-485,Ethernet, USB,Software
Environmental Sensors	Temperature, Relative Humidity, Air Velocity, Differential Pressure,
(Optional)	Battery or others
Touch Screen Display	9.1 inch (23 cm) color TFT touch screen display
Reports	Pass/fail report wizard for ISO-14644 and FS-209E report formats
Alarms	Integrated alarm buzzer. Alarms on counts, low battery (optional)
Enclosure	Stainless Steel
Power	220V±10%,50Hz±2Hz	220V±10%,50Hz±2Hz
Battery	built-in lithium battery	Optional Li-Ion, removable & rechargeable (typical recharge time 5 hours)
Languages	English/Chinese/Customize

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.

These units provide immediate results that allow you to proactively monitor your environment.

It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing

Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
