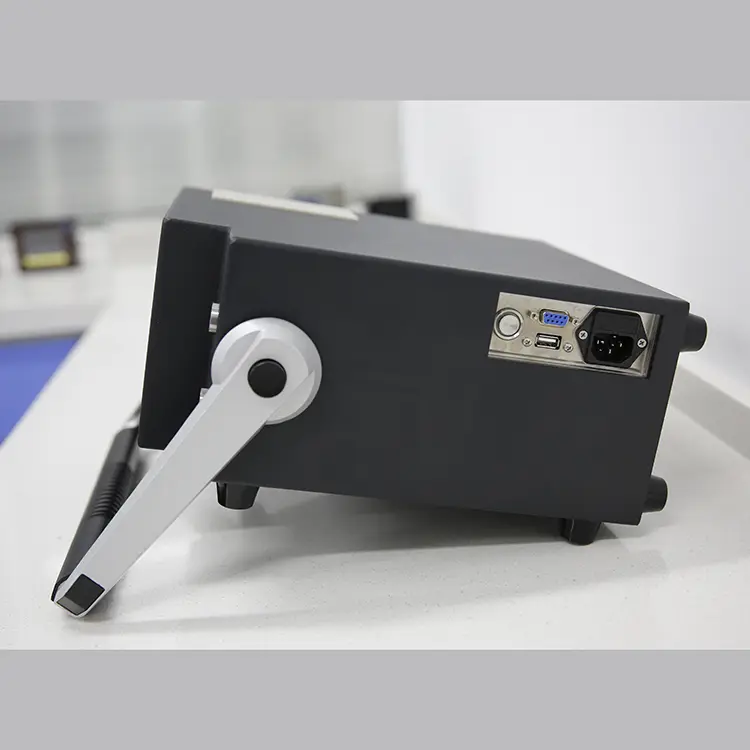

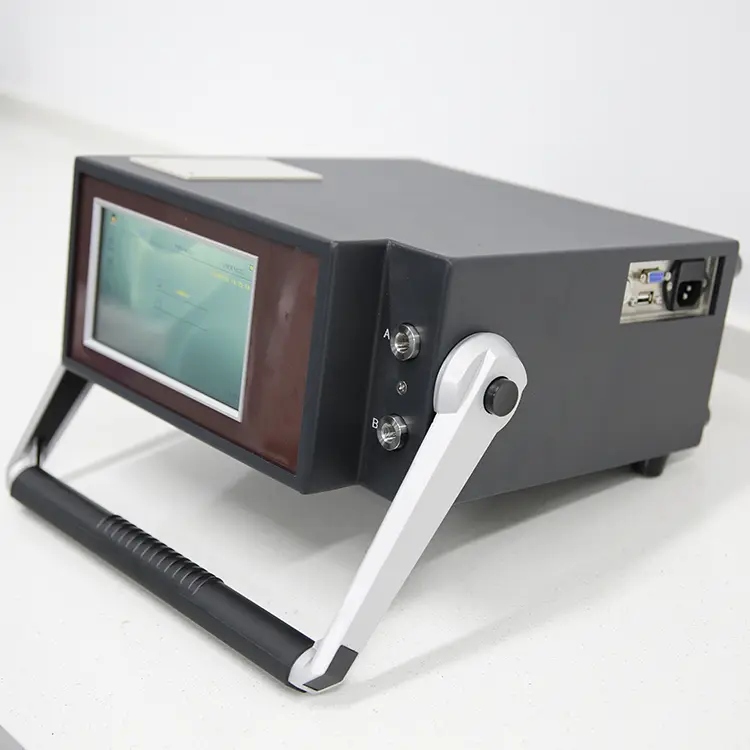

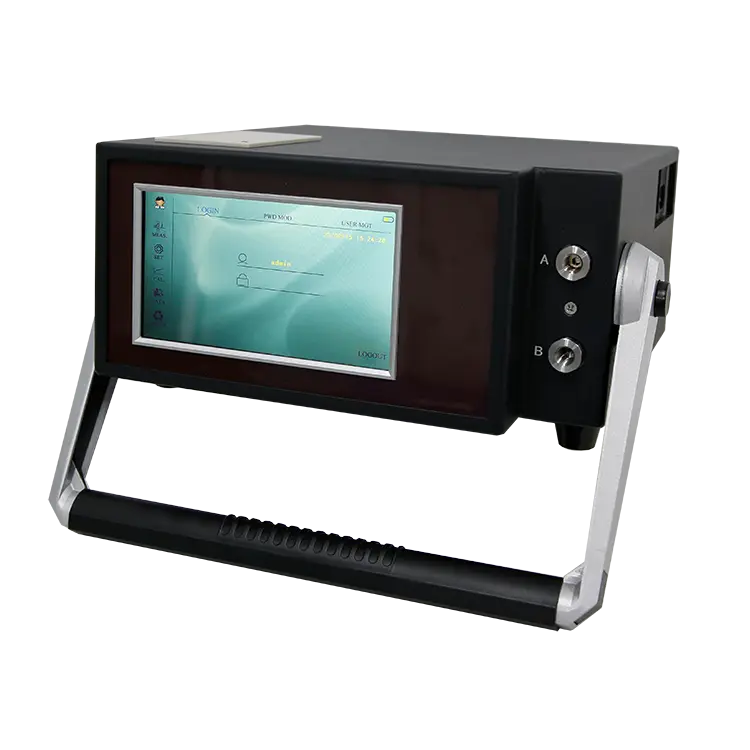

Handheld Oil Particle Counter

OPC-P2 portable oil particle counter is an instrument specially developed for oil pollution level detection according to national and international standards such as GB/T 18854-2002 (ISO11171-1999). It is suitable for on-site and laboratory pollution detection of hydraulic oil, lubricating oil, shale oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil and other oils. It can also be installed on various hydraulic transmission, oil filter, cleaning machine, test bench and other systems to realize online detection of system oil cleanliness. It can be widely used in aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

Product Features

• The light blocking (shading) test principle specified by the International Hydraulic Standards Committee
• High-precision laser sensor, wide test range, stable performance, low noise, high resolution
• High-precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy
• The pipeline is made of 316L and PTFE materials to meet the detection of various organic solvents and oils.
• For laboratory or on-site measurement, with built-in pressure reducing device for online high-pressure measurement
• Can be connected to an external pressure chamber to form positive/negative pressure, enabling detection and sample degassing of high viscosity samples
• A variety of sampling containers such as standard sampling bottles and sampling cups can be used, or directly connected to the hydraulic system to meet the testing requirements of different industries
• Built-in multiple calibration curves, compatible with all commonly used domestic and foreign standards for calibration
• Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E and ГOCT17216 and other commonly used standards. One test can give the data results under all built-in standards. It supports custom standard testing and can set the required standards according to customer needs.
• 1000 particle size channels can be set to facilitate particle size analysis
• Built-in data analysis system, which can automatically determine the sample grade according to the standard, and has the function of automatic data processing and printing
• Color touch screen operation, Chinese and English dual interface, with preset, input, modify and store functions, easy and fast operation
• With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and can also use USB for data storage
• Built-in lithium battery, no external power supply required
