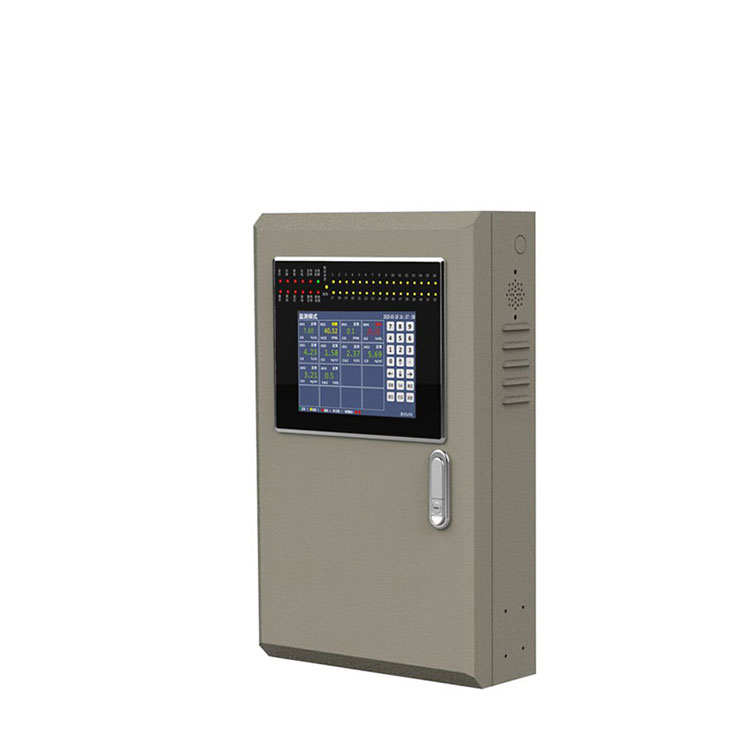

Gas Detector Controller

China Zetron MIC2000-EX explosion-proof Gas Detector Controller is a kind of gas concentration monitoring and leakage centralized alarm controller, the power supply is directly powered by utility grid or battery. We provide gas detector OEM/ODM serves.

Model:MIC2000-EX

Send Inquiry

MIC2000-EX Explosion-proof Gas Detector Controller Supplier

MIC2000 explosion-proof Gas Detector Controller is a kind of gas concentration monitoring and leakage centralized alarm controller, the power supply is directly powered by utility grid or battery. This alarm controller receives RS485 signal and 4-20mA, for the time being, it can only receive RS485 signal output from our new online detector, if you need to access the standard RS485 signal from other manufacturers, please contact us for confirmation. A gas alarm controller can access 120 RS485 output gas detectors and 8 4-20mA output gas detectors, more input channels can be customized.

Power supply	AC220V (built-in AC220V to 24VDC switching power supply) or 24V battery
Power consumption	Less than 15W
Measurement range	Synchronized with the connected detector
Installation	Wall-mounted
Alarm settings	According to the online detector can be set freely, a probe can control three groups of relays
Input signal	RS485/4-20mA
Alarm mode	Sound and light alarm
Output signal	RS485, 4-20mA output, of which 4-20mA output is an optional function. The controller sets a total of four groups of conventional contacts (24VDC/3A, AC220V/1A) and a set of common contacts (24VDC/5A, AC220V/1A); can be expanded to 9 groups of normally open / normally closed passive contact output
Temperature	-20~70℃
Humidity	0~95%RH
Explosion-proof grade	IICT6
Dimension	400400375MM(L×H×W)

MIC2000-EX Gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
